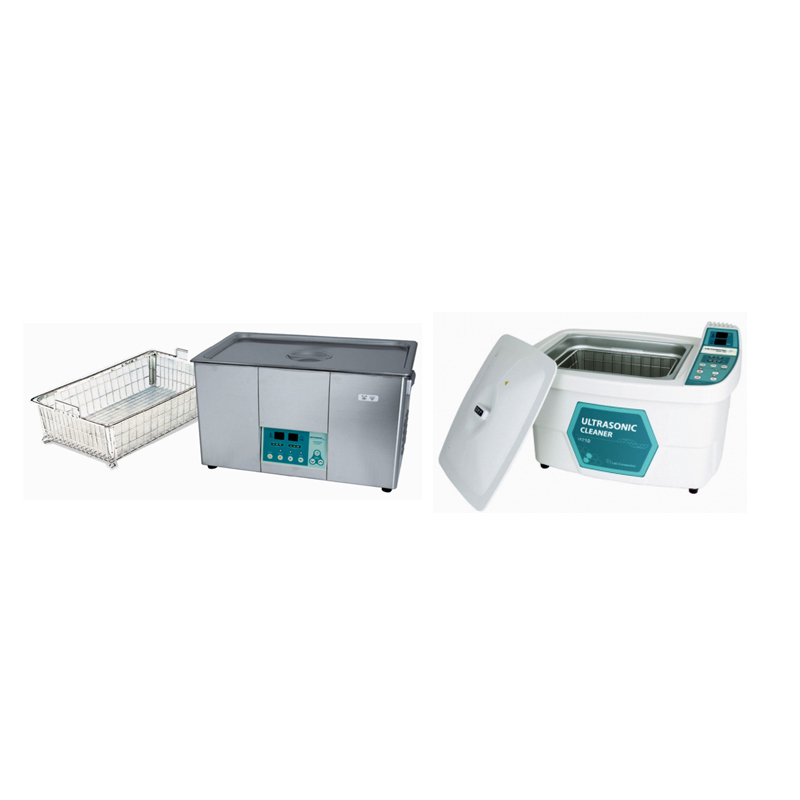

Ultrasonic Cleaners
Brand: Jeio Tech
Model: UCP-02/10/20, UCS-02/10/20
Origin: Korea
Availability: In Stock
Aggressive cleaning ability in a variety of output modes!
Industrial B.L.T type ultrasonic transducer (Bolt Clamped Langevin Type Transducer) generates high-frequency sound waves that provide maximum cleaning power.
Features
UCP-10
UCS-20
UCP models (ABS, Membrane key pad, and SUS tank)
- Durable / flame resistance ABS material used and cover with 304 stainless steel tanks.
- Over-temperature protection with alarm. (except for UCP-02)
- Digital LED display using splash-proof keypads: timer (1 to 99 min, Max 4 hour operating), temperature monitor. (except for UCP-02)
- High-frequency 40 kHz sound waves provide greater cleaning power and increased reliability.
- Multiple output mode (Normal/Pulse/Sweep) with power selection (Low/Middle/ High). (except for UCP-02)
- Before cleaning, dissolved gas removed by degas function. (except for UCP-02)
- Drain valve, basket, cover as standard offer. (except for UCP-02)
UCS models (SUS external and tank)
- External and tank parts are made of durable 304 stainless steel.
- Over-temperature protection with alarm.
- Digital LED display using splash-proof keypads: timer (1 to 99 min, Max 4 hour operating), temperature monitor.
- High-frequency 40 kHz sound waves provide greater cleaning power and increased reliability.
- Multiple output mode (Normal/Pulse/Sweep) with power selection (Low/Middle/ High).
- Drain valve, basket, cover as standard offer.
Specification
UCP models (ABS, Membrane key pad, and SUS tank)
| Model | UCP – 02 | UCP – 10 | UCP – 20 | |
|---|---|---|---|---|
| Bath volume (L / cu ft) | 2 / 0.07 | 10 / 0.35 | 20 / 0.70 | |
| Temperature range (℃ / ℉) | – | Amb. to 70 / Amb. to 158 | ||
| Ultrasonic power (W) | 100 | 300 | 500 | |
| Dimension | Bath interior (W×L, D) (mm / inch) | 142×132, 104 / 5.6×5.2, 4.1 | 295×240, 160 / 11.6×9.4, 6.3 | 500×290, 160 / 19.7×11.4, 6.3 |
| Exterior (W×L×H) (mm / inch) | 290×210×200 / 11.4×8.4×7.9 | 490×368×297 / 19.3×14.5×11.7 | 721×451×297 / 28.4×17.8×11.7 | |
| Net weight (kg / lbs) | 2 / 4.4 | 11 / 24.3 | 17 / 37.5 | |
| Electrical requirements (230V, 50 / 60Hz) | 0.6A | 1.3A | 2.2A | |
| Cat. No. | BDH532011K | BDH532012K | BDH532013K | |
UCS models (SUS external and tank)
| Model | UCS-05 | UCS-10 | UCS-20 | |
|---|---|---|---|---|
| Bath volume (L / cu ft) | 5.7 / 0.20 | 10 / 0.35 | 20 / 0.70 | |
| Temperature range (℃ / ℉) | Amb. to 70 / Amb. to 158 | |||
| Ultrasonic power (W) | 200 | 300 | 500 | |
| Dimension | Bath interior (W×L, D) (mm / inch) | 295×160, 160 / 11.6×6.3, 6.3 | 295×240, 160 / 11.6×9.4, 6.3 | 500×290, 160 / 19.7×11.4, 6.3 |
| Exterior (W×L×H) (mm / inch) | 325×230×320 / 12.8×9.1×12.6 | 325×330×320 / 12.8×12.9×12.6 | 530×330×297 / 20.9×12.9×11.7 | |
| Net weight (kg / lbs) | 8 / 17.6 | 11 / 24.3 | 15 / 33.1 | |
| Electrical requirements (230V, 50 / 60Hz) | 0.9A | 1.3A | 2.2A | |
| Cat. No. | BDH532031K | BDH532032K | BDH532033K | |
