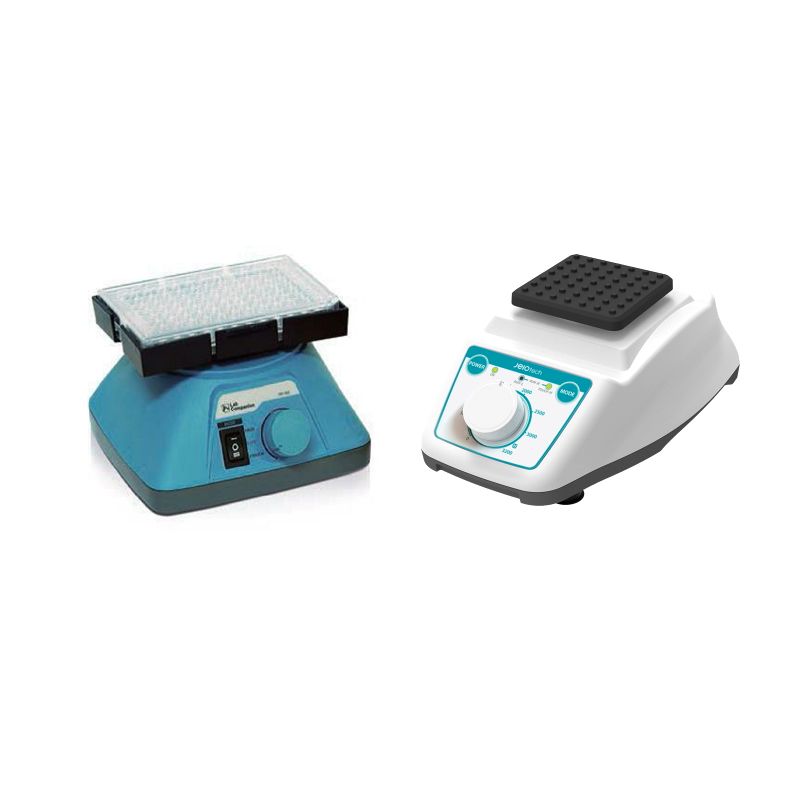

Vortex Mixer
Brand: Jeio Tech
Model: VM-96T / VM-96A
Origin: Korea
Availability: In Stock
Low profile design and highly touch sensitive sensor reduce wrist stresses when pushing and holding experiment tools resulting in less fatigue and less unpleasant feeling .
Features
High-sensitive platform (VM-96A)
-
Rapid vortex formation even touching anywhere on top plate.
-
Available to handle the several tubes at the same time.
-
Various shape tubes can be used. (centrifuge tube, conical tube, test tube, etc.)
- Well-balanced design and optimized safety features.
- Low-profile with small footprint ideal for use on lab benches and within fume hoods or clean benches.
- On touch operation mode, real-time and dynamic mixing made even with gentle touch.
– Every point of the top surface is highly reactive to gentle touch due to widely built in sensitive sensors. - Selective mixing modes with variable speed control knob.
– VM-96A: Touch / Continuous / High-continuous.
– VM-96T: Touch / Continuous. - Built-in LED lamps in case of VM-96A for easy recognition of the mixing mode selected.
- Sparkless BLDC motor adopted for safety, quick acceleration, and low maintenance.
- Built-in safety features against overload and over current.
- Chemically resistant polypropylene molded exterior.
- Wide range of accessories available.
Specification
| Model | VM-96A | VM-96T | ||
|---|---|---|---|---|
| Speed range (rpm) | Max. 3000 | |||
| Speed control | Scale | |||
| Operating mode | Touch / Continuous / High-continuous | Touch / Continuous | ||
| Motion | Orbital | |||
| Orbit size (mm, inch, dia.) | 4 / 0.16 | |||
| Max. load (kg / lbs) | 0.5 / 1.1 | |||
| Motor rating input / output (W) | 12 / 6 | |||
| Material | Platform | Silicone | ||
| Body | Polypropylene | |||
| Motor type | BLDC (Brushless Direct Current) | |||
| Dimensions | Platform (WxD) (mm / inch) | 76×76 / 3×3 | ||
| Exterior 1) (W×D×H) (mm / inch) | 154×210×84 / 6.1×8.3×3.3 | 148x159x77 / 5.8×6.3×3 | ||
| Net weight (kg / lbs) | 3 / 6.6 | 2.6 / 5.7 | ||
| Protection class (DIN EN 60529) | IP 42 | – | ||
| Electrical requirements | AC 100V to 240V, 50/60Hz | |||
| Cat. No. | KR plug | AAH360215K | AAH361215BK | |
| US plug | AAH360215U | AAH361215BU | ||
※ Permissible environmental conditions: temperature (5-40℃) and relative humidity (up to 80%)
※ Protection class according to DIN EN 60529: Waterproof, dust production index based on the test level.
※ RoHS except for VM-T.
1) Exterior dimension without accessories.
Accessories and Options
Platform (standard)
Platform (pop-off)
Microplate tray
| Cat. No. | Description |
|---|---|
| 00VMS0000058 | Platform (standard) |
| 00VMS0000063 | Platform (pop -off) |
| 00VMS0000008JT | Microplate tray |
| AAA36520 | Tube holder with tray (up to Φ50mm) |
| AAA36521 | Tube holder with tray (Φ10mm x 16ea) |
| AAA36522 | Tube holder with tray (Φ12mm x 9ea) |
| AAA36523 | Tube holder with tray (Φ15mm x 9ea) |
| AAA36524 | Tube holder with tray (Φ20mm x 5ea) |
| AAA36525 | Tube holder with tray (Φ25mm x 4ea) |
| AAA36526 | Tube holder with tray (Φ8mm x 18ea & Φ10mm x 28ea) |
