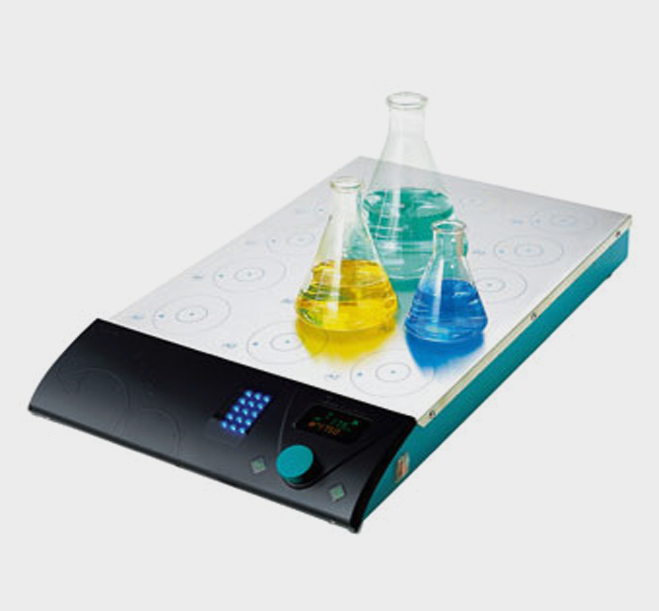

Magnetic Stirrers (Multi Position)
Brand: JeioTech
Model: MS-23M/32M/33M/51M/52M/53M
Origin: Korea
Availability: It will be available within 2-3 weeks.
Description
Features
Performance & Convenience
- Ergonomic designed, lightweight, easy to operate, and low profile.
- Best-in-the-class with broad speed range and suitable for high-speed rotation experimental environment.
- Spark-less, silent and durable BLDC motor.
- Wide top plate.
- Non-slip strength rubber feet.
- Strong magnetic coupling to ensure constant stirring.
- Digital PID feedback control for every single point, separately.
- User-friendly operation and time setting modes allowing various ways of multi-position stirring to meet users’ demands:
single point, multiple point, whole row, whole column, etc. - Easy-to-read VFD and intuitive control panel.
- Bright and vivid LED position indicating lamps.
- Non-slip see-through silicon plate mat. (optional)
- Chemical-resistant #304 grade stainless steel top-plate.
Safety
- Unit is safely designed to protect internal components from accidental spills.
- Built-in thermal shutdown and current limit protection.
Specification
| Model | MS-23M | MS-32M | MS-33M | MS-51M | MS-52M | MS-53M | ||
|---|---|---|---|---|---|---|---|---|
| Technical data | Speed control | Feedback control with PID | ||||||
| Stirring | Position | 6 | 6 | 9 | 5 | 10 | 15 | |
| Speed range (rpm) | 30 to 2,000 | |||||||
| Stirring point distance (W×D)
(mm / inch) |
117×170 /4.6×6.69 | 117×90 /4.6×3.54 | 117×90 /4.6×3.54 | 90 / 3.54 | 117×90 / 4.6×3.54 | |||
| Timer | 1 min. to 99 hr. 59 min. | |||||||
| Speed display | VFD | |||||||
| Motor rating input/ output (W)
per each point |
2.9 / 1.6 | |||||||
| Load, Max (kg / lbs) | 30 / 66.14 | |||||||
| General data | Dimension (W×D×H)
(mm / inch) |
377×436×82/ 14.8×17.2×3.2 | 254×436×82/ 10×17.2×3.2 | 377×436×81/ 14.8×17.2×3.2 | 131×603×82/ 5.2×23.7×3.2 | 254×602×82/ 10×23.7×3.2 | 377×599×82/ 14.9×23.6×3.2 | |
| Weight (kg / lbs) | 6 / 13.23 | 5 / 11.02 | 7 / 15.43 | 4 / 8.82 | 8 / 17.64 | 11 / 24.25 | ||
| Electrical requirements | AC 100 ~ 240V, 50 / 60Hz | |||||||
| Power consumption (W) | 45 | 45 | 54 | 45 | 85 | 135 | ||
| Protection class (DIN EN 60529) | IP 21 | |||||||
| Cat. No. | KR plug | AAH332115K | AAH332215K | AAH332315K | AAH332415K | AAH332515K | AAH332615K | |
| US plug | AAH332115U | AAH332215U | AAH332315U | AAH332415U | AAH332515U | AAH332615U | ||
Accessories and Options
Magnetic stirring bars
-
Octahedral magnetic stirring bar
Cat. No. Ø (mm / inch) L (mm / inch) BCW001513 8 / 0.31 13 / 0.51 BCW001515 8 / 0.31 15 / 0.59 BCW001522 8 / 0.31 22 / 0.86 BCW001525 8 / 0.31 25 / 0.98 BCW001528 8 / 0.31 28 / 0.10 BCW001538 8 / 0.31 38 / 1.49 BCW001541 8 / 0.31 41 / 1.61 BCW001551 8 / 0.31 51 / 2.00 BCW00155110 10 / 0.39 51 / 2.00 -
Cylindrical magnetic stirring bar
Cat. No. Ø (mm / inch) L (mm / inch) BCW0011138 8 / 0.31 13 / 0.51 BCW0011156 6 / 0.23 15 / 0.59 BCW011208 8 / 0.31 20 / 0.78 BCW0011258 8 / 0.31 25 / 0.98 BCW0011308 8 / 0.31 30 / 1.18 BCW001140 8 / 0.31 40 / 1.57 BCW001150 8 / 0.31 50 / 1.96 -
Oval magnetic stirring bar
Cat. No. Ø (mm / inch) L (mm / inch) BCW001610 5 / 0.19 10 / 0.39 BCW001615 6 / 0.23 15 / 0.59 BCW001620 10 / 0.39 20 / 0.78 BCW00162510 10 / 0.39 25 / 0.98 BCW001630 16 / 0.63 30 / 1.18 BCW001635 16 / 0.63 35 / 1.38 BCW001640 20 / 0.78 40 / 1.57 BCW001650 20 / 0.78 50 / 1.96
Plastic retrievers
-
Plastic retriever (PP) Plastic retriever (PTFE)
Cat. No. Ø (mm / inch) L (mm / inch) BCW0041300 10 / 0.39 300 / 11.81 BCW0041350 10 / 0.39 350 / 13.77 BCW0041450 10 / 0.39 450 / 17.71 -
Plastic retriever (PTFE)
Cat. No. Ø (mm / inch) L (mm / inch) BCW004150 10 / 0.39 150 / 5.90 BCW004250 10 / 0.39 250 / 9.84 BCW004350 10 / 0.39 350 / 13.77 BCW004450 10 / 0.39 450 / 17.71 -
Support rod / Clamp holders
-
Support rod (M10)
-
Clamp holder (C-10)
-
Clamp holder (C-7)
-
Clamp holder (C-5)
| Cat. No. | Description |
|---|---|
| 00MTT0000132 | Support rod, M10 (Ø12×400mm / Ø0.47×15.75˝) |
| AAA37512 | Clamp holder, C-10 (Al body, Ø17mm / Ø0.66˝) |
| AAA37513 | Clamp holder, C-7 (Al body, Ø12mm / Ø0.47˝) |
| AAA37514 | Clamp holder, C-5 (PP body, Ø12mm / Ø0.47˝) |
| BEA1000014 | 2 Prong clamp (60mm / 2.36˝ grip) |
for Plate cover / Silicone pad / Power divider
-
Plate covers (black & white)
-
Silicone pad
-
Power divider (5 channels*)
| Cat. No. | Description | Suitable for |
|---|---|---|
| 00MTT0000144 | Plate cover (White color, Silicone Ø115mm / Ø4.53˝) | MS-12T |
| 00MTT0000146 | Plate cover (White color, Silicone Ø165mm / Ø6.49˝) | MS-17T |
| 00MTT0000002 | Plate cover (White color, Silicone Ø120mm / Ø4.72˝) | MS-12B |
| 00MTT0000003 | Plate cover (White color, Silicone Ø170mm / Ø6.69˝) | MS-17B/G |
| 00MTT0000004 | Plate cover (White color, Silicone Ø220mm / Ø8.66˝) | MS-22B/G |
| 00MTT0000143 | Plate cover (Black color, Silicone Ø115mm / Ø4.53˝) | MS-12T |
| 00MTT0000145 | Plate cover (Black color, Silicone Ø165mm / Ø6.49˝) | MS-17T |
| 00MTT0000005 | Plate cover (Black color, Silicone Ø120mm / Ø4.72˝) | MS-12B |
| 00MTT0000006 | Plate cover (Black color, Silicone Ø170mm / Ø6.69˝) | MS-17B/G |
| 00MTT0000007 | Plate cover (Black color, Silicone Ø220mm / Ø8.66˝) | MS-22B/G |
| 00MTS0000015 | Silicone pad (355×475×1mm / 13.98×18.70×0.04˝) | MS-53M |
| 00MTS0000016 | Silicone pad (235×475×1mm / 9.25×18.70×0.04˝) | MS-52M |
| 00MTS0000017 | Silicone pad (115×475×1mm / 4.53×18.70×0.04˝) | MS-51M |
| 00MTS0000041 | Silicone pad (235×310×1mm / 9.25×12.20×0.04˝) | MS-32M |
| 00MTS0000042 | Silicone pad (355×310×1mm / 13.98×12.20×0.04˝) | MS-23M/33M |
| 00MTT0000001 | Power adapter (100~240V, 50/60Hz) | MS-12B/T, MS-17B/T |
| AAH33501 | Power divider (5 channels) 1) with M10 rod, adapter(100~240V, 50/60Hz), five DC plugs |
1) Power supply to max. five units at the same time.
