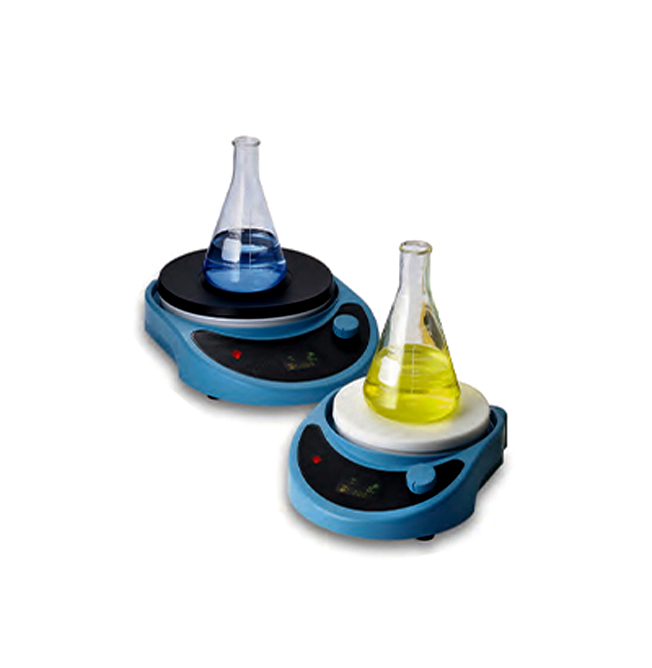

Magnetic Stirrers (Digital)
Brand: JeioTech
Model: MS-17G/22G
Origin: Korea
Availability: It will be available within 2-3 weeks.
Description
Features
Performance & Convenience
- Ergonomic designed, lightweight, easy to operate, and low profile.
- Best-in-the-class with broad speed range and suitable for high-speed rotation experimental environment.
- Spark-less, silent and durable BLDC motor.
- Wide top plate.
- Two non-slip silicone plate covers (white & black) provided.
- Non-slip strength rubber feet.
- Strong magnetic coupling to ensure constant stirring.
- Digital PID feedback control for reproducible stirring results.
- Convenient program control.
- Gradual start-up to protect users against splashing of samples.
- Bright and vivid VFD and responsive touch buttons.
- Easy-settable digital timer (1 min. to 99hr. 59min.)
- M10 threaded hole to hold a support rod.
Safety
- Unit is safely designed to protect internal components from accidental spills.
- Built-in thermal shutdown and current limit protection.
Specification
| Model | MS-17G | MS-22G | ||
|---|---|---|---|---|
| Technical data | Speed control | Feedback control with PID | ||
| Stirring capacity (Liter, H2O) | 4 | 5 | ||
| Speed range (rpm) | 30 to 2,000 | |||
| Speed display | VFD | |||
| Motor rating input / output (W) | 2.9 / 1.6 | |||
| Magnetic bar, Max. (Ø×L) (mm / inch) | 8×40 / 0.31×1.57 | 10×50 / 0.39×1.97 | ||
| Load, Max (kg / lbs) | 20 / 44.09 | 25 / 55.12 | ||
| Top plate | Material | Polypropylene with non-slip silicon cover | ||
| Dimension (Ø, mm / inch) | 170 / 6.69 | 220 / 8.66 | ||
| General data | Body material | Polypropylene | ||
| Dimension (W×D×H) (mm / inch) | 210×280×72 / 8.3×11×2.8 | 260×355×72 / 10.2×14×2.8 | ||
| Net weight (kg / lbs) | 1.35 / 2.98 | 1.75 / 3.86 | ||
| Electrical requirements | AC 100 ~ 240V, 50 / 60Hz | |||
| Power consumption (W) | 6 | |||
| Protection class (DIN EN 60529) | IP42 | |||
| Cat. No. | KR plug | AAH331215BK | AAH331315BK | |
| US plug | AAH331215BU | AAH331315BU | ||
Accessories and Options
Magnetic stirring bars
-
Octahedral magnetic stirring bar
Cat. No. Ø (mm / inch) L (mm / inch) BCW001513 8 / 0.31 13 / 0.51 BCW001515 8 / 0.31 15 / 0.59 BCW001522 8 / 0.31 22 / 0.86 BCW001525 8 / 0.31 25 / 0.98 BCW001528 8 / 0.31 28 / 0.10 BCW001538 8 / 0.31 38 / 1.49 BCW001541 8 / 0.31 41 / 1.61 BCW001551 8 / 0.31 51 / 2.00 BCW00155110 10 / 0.39 51 / 2.00 -
Cylindrical magnetic stirring bar
Cat. No. Ø (mm / inch) L (mm / inch) BCW0011138 8 / 0.31 13 / 0.51 BCW0011156 6 / 0.23 15 / 0.59 BCW0011208 8 / 0.31 20 / 0.78 BCW0011258 8 / 0.31 25 / 0.98 BCW0011308 8 / 0.31 30 / 1.18 BCW001140 8 / 0.31 40 / 1.57 BCW001150 8 / 0.31 50 / 1.96 -
Oval magnetic stirring bar
Cat. No. Ø (mm / inch) L (mm / inch) BCW001610 5 / 0.19 10 / 0.39 BCW001615 6 / 0.23 15 / 0.59 BCW001620 10 / 0.39 20 / 0.78 BCW00162510 10 / 0.39 25 / 0.98 BCW001630 16 / 0.63 30 / 1.18 BCW001635 16 / 0.63 35 / 1.38 BCW001640 20 / 0.78 40 / 1.57 BCW001650 20 / 0.78 50 / 1.96
Plastic retrievers
-
Plastic retriever (PP) Plastic retriever (PTFE)
Cat. No. Ø (mm / inch) L (mm / inch) BCW0041300 10 / 0.39 300 / 11.81 BCW0041350 10 / 0.39 350 / 13.77 BCW0041450 10 / 0.39 450 / 17.71 -
Plastic retriever (PTFE)
Cat. No. Ø (mm / inch) L (mm / inch) BCW004150 10 / 0.39 150 / 5.90 BCW004250 10 / 0.39 250 / 9.84 BCW004350 10 / 0.39 350 / 13.77 BCW004450 10 / 0.39 450 / 17.71 -
Clamp rod / Clamp holders
-
Clamp rod (M10)
-
Clamp holder (C-10)
-
Clamp holder (C-7)
-
Clamp holder (C-5)
| Cat. No. | Description |
|---|---|
| 00MTT0000132 | Clamp rod, M10 (Ø12×400mm / Ø0.47×15.75˝) |
| AAA37512 | Clamp holder, C-10 (Al body, Ø17mm / Ø0.66˝) |
| AAA37513 | Clamp holder, C-7 (Al body, Ø12mm / Ø0.47˝) |
| AAA37514 | Clamp holder, C-5 (PP body, Ø12mm / Ø0.47˝) |
| BEA1000014 | 2 Prong clamp (60mm / 2.36˝ grip) |
for Plate cover / Silicone pad / Power divider
-
Plate covers (black & white)
-
Silicone pad
| Cat. No. | Description | Suitable for |
|---|---|---|
| 00MTT0000002 | Plate cover (White color, Silicone Ø120mm / Ø4.72˝) | MS-12B |
| 00MTT0000003 | Plate cover (White color, Silicone Ø170mm / Ø6.69˝) | MS-17B/G |
| 00MTT0000004 | Plate cover (White color, Silicone Ø220mm / Ø8.66˝) | MS-22B/G |
| 00MTT0000005 | Plate cover (Black color, Silicone Ø120mm / Ø4.72˝) | MS-12B |
| 00MTT0000006 | Plate cover (Black color, Silicone Ø170mm / Ø6.69˝) | MS-17B/G |
| 00MTT0000007 | Plate cover (Black color, Silicone Ø220mm / Ø8.66˝) | MS-22B/G |
| 00MTS0000015 | Silicone pad (355×475×1mm / 13.98×18.70×0.04˝) | MS-53M |
| 00MTS0000016 | Silicone pad (235×475×1mm / 9.25×18.70×0.04˝) | MS-52M |
| 00MTS0000017 | Silicone pad (115×475×1mm / 4.53×18.70×0.04˝) | MS-51M |
| 00MTS0000041 | Silicone pad (235×310×1mm / 9.25×12.20×0.04˝) | MS-32M |
| 00MTS0000042 | Silicone pad (355×310×1mm / 13.98×12.20×0.04˝) | MS-23M/33M |
| 00MTT0000001 | Power adapter (100~240V, 50/60Hz) | MS-12B/17B |
1) Power supply to max. five units at the same time.
