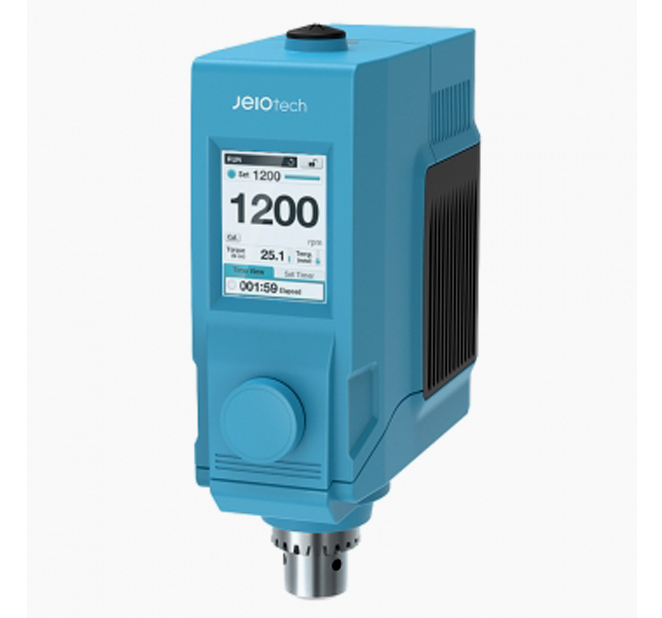

Overhead Stirrers (Prestige touch)
Brand: JeioTech
Model: MSH-0512/0520
Origin: Korea
Availability: It will be available within 2-3 weeks.
Description
Features
Performance
- Years of vibration-free and silent operation.
– Equipped with a maintenance-free BLDC motor to generate smooth, quiet, and yet powerful stirring. - Powerful torque capable of handling high viscosity tasks.
- Maintenance of constant motor speed by PID feedback control system even under conditions of changing viscosity.
- Best effort function intelligently manages its stirring speed to keep stirring even workload is out of its capacity.
- Prevention of accidental spills or splashes thanks to microprocessor controlled smooth start and stop functions.
Convenience
- Touch type LCD controller.
– Various essential information are visible at once and intuitionally controlled.
– Set/present rpm and run time view, simple timer set. (max. 99 hr. 59 min.)
– Varying motor torque is indicated on display in real time.
– Motor temperature condition is indicated on display by three different colors to protect motor.
– Stirring directions are selectable depending on each impeller’s shape. - Built-in USB port for external control and data collection.
– Useful for PC control and data management task.
– Lab Companion software and USB cable are provided as standard. - Practical external controller.
– Intuitive and easy control with color touch LCD.
– It enables convenient and safe external control without opening the sash of the fume hood or safety cabinet. - Compact and slim head design for diverse flexibility in configuring other test equipment and accessories. (optional)
Safety
- Sturdy aluminum main body efficiently absorbing and emitting the heat generated by the motor.
- Safety features against overload and overheating for continuous operation.
– When it comes to heavy workload, it tries to activate best effort function.
But if it determines that performing the work is harmful for it, than it stops stirring.
– Equipped with a mini fan inside to minimize overheating of the motor. - Separated adapter from the main body minimizes the risks of electrical hazards to the users.
- Screen lock function prevents accidental changes during operation.
Specification
| Model | MSH-0512 | MSH-0520 | |
|---|---|---|---|
| Speed control | PID feedback control | ||
| Speed range (rpm) | 50 to 1,200 | 50 to 2,000 | |
| Chuck range (mm / inch, dia) | 3 to 10 / 0.1 to 0.4 | ||
| Stirring capacity, Max. (L, H2O) | 100 | 60 | |
| Viscosity, Max. (cP) 1) |
5,000 (~1,200rpm)
10,000 (~1,200rpm)
30,000 (~1,200rpm)
50,000 (~700rpm)
|
5,000 (~2,000rpm)
10,000 (~1,600rpm)
30,000 (~600rpm)
50,000 (~300rpm)
|
|
| Torque, Max. (N·cm) | 41.6 | 20.8 | |
| Motor rating input / output (W) | 71 / 48 | ||
| Material | Body / Cover / Motor | Powder coated aluminum / Polypropylene / BLDC | |
| Dimension | Overall (W×D×H) (mm / inch) | 80x185x235 / 3.1×7.3×9.3 | |
| Net weight (Kg / lbs) | 3.1 / 6.8 | ||
| Protection class (DIN EN 60529) | IP30 | ||
| Electrical requirements | AC 100 to 240V, 50/60Hz with power adapter | ||
| Power consumption (W) | 5.0 A | 5.0 A | |
| Cat. No. | KR Plug | AAH371415K | AAH371515K |
| US Plug | AAH371415U | AAH371515U | |
Accessories and Options
Impellers
- Propeller impellers
Standard grade stainless steel with Teflon shaft produces an-axial flow stir between the bottom and top levels of a sample with local shearing force. Used at medium or high speeds for mixing normal range level viscosity samples. - Turbine impellers
A radial flowing stir from the top and bottom levels of a sample with a powerful, high shearing turbulent force. Used ideally for the gassing of liquids and mixing medium to high range level viscosity samples. - Half-moon impellers / Centrifugal impellers
Tiltable moon-shaped and blade shaft produces a normal axial flow percentage mixing of samples. Used with round bottom shaped containers, medium mixing speed, and samples ranging from low to medium visco-sity levels. - Anchor impellers / Paddle impellers
An anchored shaft that produces a strong tangential flow with a high shearing percentage force on samples with medium to high viscosity level with speed setting in the low to medium range.
Stainless steel impellers
-
Propeller (3-bladed / 4-bladed)
-
Turbine / Dissolver
-
Half-moon / Centrifugal
-
Anchor / Paddle
| Cat. No. | Blade (WxH, mm / inch) |
Shaft (Ø, mm / inch) |
Length (mm / inch) |
|---|---|---|---|
| 3-bladed propeller | |||
| AAA37521 | 50 / 1.97 | 8 / 0.31 | 500 / 19.7 |
| AAA37522 | 70 / 2.76 | 8 / 0.31 | 500 / 19.7 |
| AAA37523 | 100 / 3.94 | 8 / 0.31 | 500 / 19.7 |
| 4-bladed propeller | |||
| AAA37531 | 50 / 1.97 | 8 / 0.31 | 400 / 15.75 |
| AAA37532 | 70 / 2.76 | 8 / 0.31 | 400 / 15.75 |
| AAA37533 | 100 / 3.94 | 8 / 0.31 | 400 / 15.75 |
| Turbine | |||
| AAA37561 | 57 / 2.24 | 8 / 0.31 | 500 / 19.69 |
| AAA37562 | 90 / 3.54 | 8 / 0.31 | 500 / 19.69 |
| Dissolver | |||
| BEA0570031 | 50 / 1.97 | 8 / 0.31 | 300 / 11.81 |
| BEA0570032 | 70 / 2.76 | 8 / 0.31 | 300 / 11.81 |
| Cat. No. | Blade (WxH, mm / inch) |
Shaft (Ø, mm / inch) |
Length (mm / inch) |
|---|---|---|---|
| Half-moon | |||
| AAA37541 | 65×20 / 2.56×0.79 | 8 / 0.31 | 300 / 11.81 |
| AAA37542 | 90×25 / 3.54×0.98 | 8 / 0.31 | 500 / 19.69 |
| Centrifugal | |||
| AAA37551 | 90×15 / 3.54×0.59 | 8 / 0.31 | 500 / 19.69 |
| AAA37552 | 1500×15 / 5.90×0.59 | 8 / 0.31 | 500 / 19.69 |
| Anchor | |||
| AAA37571 | 45×45 / 1.77×1.77 | 8 / 0.31 | 300 / 11.81 |
| AAA37572 | 60×60 / 2.36×2.36 | 8 / 0.31 | 500 / 19.69 |
| Paddle A | |||
| AAA37581 | 70×70 / 2.76×2.76 | 8 / 0.31 | 500 / 19.69 |
PTFE coated impellers
-
Propeller (4-bladed)
-
Turbine
-
Half-moon / Centrifugal
-
Anchor (Square) / Paddle A
| Cat. No. | Blade (WxH, mm / inch) |
Shaft (Ø, mm / inch) |
Length (mm / inch) |
|---|---|---|---|
| 4-bladed propeller | |||
| BEA0570081 | 50 / 1.97 | 8 / 0.31 | 500 / 19.69 |
| BEA0570082 | 70 / 2.76 | 8 / 0.31 | 500 / 19.69 |
| Turbine | |||
| BEA0570131 | 70 / 2.76 | 8 / 0.31 | 500 / 19.69 |
| Cat. No. | Blade (WxH, mm / inch) |
Shaft (Ø, mm / inch) |
Length (mm / inch) |
|---|---|---|---|
| Half-moon | |||
| BEA0570091 | 60×18 / 2.36×0.71 | 8 / 0.31 | 500 / 19.69 |
| Centrifugal | |||
| BEA0570101 | 76×17 / 2.99×0.67 | 8 / 0.31 | 500 / 19.69 |
| Anchor (Square) | |||
| BEA0570111 | 80×50 / 3.15×1.97 | 8 / 0.31 | 500 / 19.69 |
| Anchor (Round) | |||
| BEA0570121 | 80×40 / 3.15×1.57 | 8 / 0.31 | 500 / 19.69 |
| Paddle | |||
| BEA0570141 | 70 / 2.76 | 8 / 0.31 | 500 / 19.69 |
| Paddle A | |||
| BEA0570151 | 78×80 / 3.07×3.15 | 8 / 0.31 | 500 / 19.69 |
Monitor and control MSH more convenient!
-
Bluetooth broadcaster for remote control.
Monitor and control MSH through your mobile device with Bluetooth Broadcaster. Anyone can control MSH by android device. Also you can automatically receive safety alarm to your mobile device.
| Cat. No. | Description |
|---|---|
| AAAQ1012 | Bluetooth broadcaster (2.4GHz ISM band) (WxDxH, 140x54x18mm / 5.5×2.1×0.7˝) |
External controller for MSH
-
External controller for practical external control.
Real time external monitor and control of the current operating condition without opening the door of the enclosure.
| Cat. No. | Description |
|---|---|
| AAA37591 | External controller (3m cable) (W×D×H, 60x16x120 / 2.4×0.6×4.7˝) |
Stands / Support rods
Dial stand / Basic stand 1
with two optional support rods
Basic stand 2 / Basic stand 3
| Cat. No. | Description |
|---|---|
| AAA37501 | Dial stand (W×D×H, 400×400×700 / 15.75×15.75×27.56˝) |
| AAA37502 | Basic stand 1 (W×D×H, 400×400×700 / 15.75×15.75×27.56˝) |
| AAA37503 | Basic stand 2 (W×D×H, 300×400×700 / 11.81×15.75×27.56˝) |
| AAA37504 | Basic stand 3 (W×D×H, 250×350×700 / 9.84×13.78×27.56˝) |
| MSS0051 | Support Rod, M14 (Ø15x500mm / Ø0.59×19.68˝) |
| MSS0052 | Support Rod, M14 (Ø18x500mm / Ø0.71×19.68˝) |
| MSS0053 | Support Rod, M14 (Ø20x500mm / Ø0.79×19.68˝) |
Clamps / Others
-
Utility clamp 3 prong
-
Utility clamp plat
-
3 prong clamp
-
2 prong clamp
-
Fixing clamp
-
Clamp holder (C-10)
-
Clamp holder (C-20)
-
Flexible coupling
-
PTFE stirring seals
| Cat. No. | Description |
|---|---|
| BEA1000001 | Utility clamp 3 prong |
| BEA1000002 | Utility clamp plat |
| BEA1000011 | 3 prong clamp (80mm / 3.15˝grip) |
| BEA1000012 | 3 prong clamp (60mm / 2.36˝grip) |
| BEA1000013 | 3 prong clamp (20mm / 0.79˝grip) |
| BEA1000014 | 2 prong clamp (60mm / 2.36˝grip) |
| BEA0570181 | Fixing clamp |
| Cat. No. | Description |
|---|---|
| AAA37512 | Clamp holder, C-10 (Al body, Ø17mm / 0.67˝) |
| AAA37511 | Clamp holder, C-20 (Al body, Ø27mm / 1.06˝) |
| BEA0570191 | Flexible coupling |
| BEA0570161 | PTFE stirring seals (24 / 40) for 8mm |
| BEA0570162 | PTFE stirring seals (29 / 42) for 8mm |
| BEA0570163 | PTFE stirring seals (34 / 45) for 8mm |
