Vacuum Defoaming Stirrer
Brand: JeioTech
Model: VDC-41D
Origin: Korea
Availability: It will available within 2-3 weeks.
Features
Structural Functional Features
- Simultaneous mixing and degassing to save time and cost.
- Vacuum stirring unit for uniform mixing and efficient bubble removal.
- Seamless molded body structure as a single piece, for maximum sealing performance.
Applications
- Cosmetics: Removes air bubbles during cosmetic mixing to achieve a smoother texture and improved product stability
- Pharmaceuticals: Eliminates air bubbles during drug formulation to ensure consistent quality and stability.
- Chemicals: Used for uniform mixing and degassing in the production of paints and coatings, adhesives, and sealants.
- Semiconductors: Removes air bubbles when mixing conductive pastes or adhesives in electronic substrate manufacturing, maximizing electrical performance.
Specification
| Model | VDC-41D | |
|---|---|---|
|
Internal volume (L) |
45 |
|
|
Vacuum |
Gauge range (Analog, MPa) |
0 ~ -0.1 |
|
Max. permissible vacuum (MPa) |
1.33 × 10⁻⁴ (1 Torr) |
|
|
Nozzle diameter (Ø, mm) |
9.5 |
|
|
Mixing |
Max. rpm |
300 |
|
Max. Viscosity (cPs) |
6000 |
|
|
Material |
Body, Shelves |
Polycarbonate, Transparent |
|
3-Way Valve, Latch, Desiccant tray |
Polypropylene |
|
|
Vacuum Seal, Foot |
Silicone Rubber |
|
|
Dimensions |
Overall (W x D x H, mm / inch) |
420 x 397 x 501 / 16.5 x 15.6 x 19.7 |
|
Door opening (W x H, mm / inch) |
295 x 445 / 11.6 x 17.5 |
|
|
Shelf (W x D x H, mm / inch) |
289 x 304 x 11 / 11.4 x 12.0 x 0.4 |
|
|
Desiccant tray (W x D x H, mm / inch) |
218 x 268 x 26 / 8.6 x 10.6 x 1.0 |
|
|
Net weight (kg / lbs) |
14.8 / 32.6 |
|
|
Shelves |
Number of Standard / Max. (ea) |
3 / 6 ea |
|
Max. load/shelf (kg / lbs) |
5 / 11 |
|
| Cat. No. | AAAD4431 | |
Accessories and Options
tandard Accessories
-
Lab Sticker
Anti-slip, vibration-absorbing pad -
Stand
Support base for stirrer -

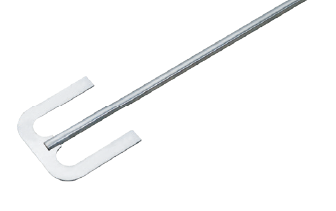

Anchor Impeller
Stainless steel blade for high-viscosity sample
| Cat. No. | Product Name |
|---|---|
| VDC0005 | Desiccant tray |
| VDC0003 | Perforated shelf |
| VDC0034 | Vacuum seal |
| AAAD4501 | 3-way valve |
| VDC0083 | Vacuum Gauge |
| AAAD1506 | Vacuum mixing seal |
| AAA30551 | Lab sticker |
| AAA37508 | Stand |
| AAA37572 | Anchor Impeller |
※ The above accessories are included as standard. For additional purchases or replacements, please order using the corresponding Cat. No.
※ The Vacuum Defoaming Stirrer is supplied with the AAA37572 Anchor-type impeller as standard. If a different impeller is required, models with Ø8 · length 500mm are available separately.
Optional Accessories
-
Lab Sticker

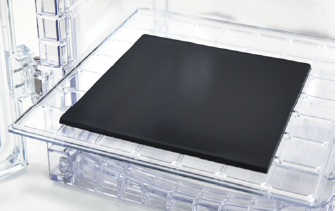

Anti-slip, vibration-absorbing pad -
Stand
Support base for stirrer
| Cat. No. | Product Name |
|---|---|

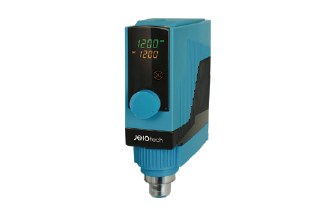

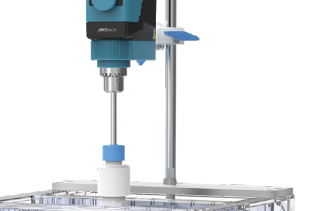

| AAH371415K | Overhead Stirrer (MSH, MSD, MSA Series) |
| AAH371515K | |
| AAH373225K | |
| AAH373325K | |

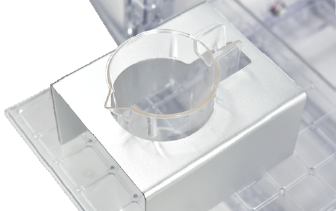

| AAAD1507 | Beaker Dock Shelf Set |
※ The overhead stirrer for the vacuum defoaming stirrer is compatible with other brands.
