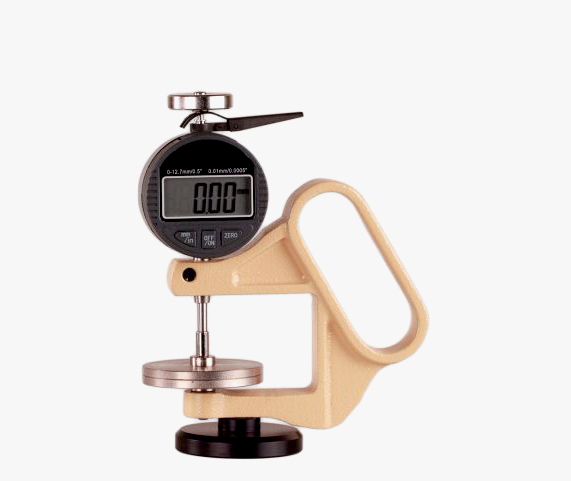

Thickness Gauge DD-50
Brand: SCHMIDT
Model: DD-50
Origin: Germany
Availability: In Stock
Measuring range 0 – 10 mm / 0.4 inch
(optional 0-25 mm / 1 inch)
Resolution 0.01 mm / 0.0005 inch
Thickness gauge to determine the thickness of textiles, fleece, floor coverings, leather etc. This low cost thickness gauge is suitable for quick comparison measurements.
For thickness measurements similar to DIN EN ISO standards
Special Features
Standard Features
Available Models
| Model | Standard | Measuring Range |
Depth of jaw |
Application | Feeler Ø in mm |
Feeler cm² |
Pressure |
| DD-50-T | similar to DIN EN ISO 5084 | 0 – 10 mm 0.4 Inch |
50 mm | Textiles and Non- woven textiles |
50.42 | 20 | 1 kPA |
| DD-50-V | similar to DIN EN ISO 9073-2 | 0 – 10 mm 0.4 Inch |
50 mm | Standard fleece | 56.42 | 25 | 0.5 kPA |
| DD-50-L | similar to DIN EN ISO 2589 | 0 – 10 mm 0.4 Inch |
50 mm | Leather | 10 | 0.785 | 49.1 kPA |
Please indicate when the optional measuring range 0 – 25 mm (e. g. DD-50-T Code E) is required.
The thickness gauge is available with 200 mm, 300 mm or 500 mm depth of jaw .
Specifications
| Measuring range: | 0 – 10 mm / 0 – 0.4 inch (option 0 – 25 mm / 0 – 1 inch) |
| Resolution: | 0.01 mm / 0.0005 inch |
| Depth of jaw: | 50 mm |
| Display: | LCD 4 digit, 8 mm high |
| Data output: | USB |
| Dimensions: | 103 x 65 x 145 mm (LxWxH) |
| Weight, net (gross): | Approx. 500 g (1100 g) |
Specifications subject to change without notice!
Accessories (optional)
Software for data transfer, displaying and analysis of measured data on PC
– Actual value
– Average value
– List of all readings
– Maximum
– Minimum
– Data storage in Excel
Order number: SW-53
Data cable USB used for data transfer via USB interface
Order number: 35012W
Delivery Includes
Thickness gauge DD-50 with carrying case, battery, additional weight, manufacturer calibration report free of charge
