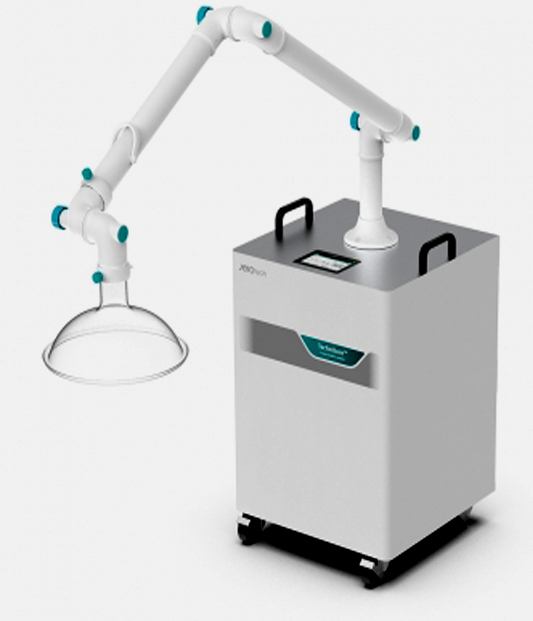

Mobile Fume Extractor (Local Exhaust Type)

Structural Functional Features

• Excellent space utilization through compact design.
• The body has a low height (650 mm) allowing it to be placed on the bench and on the bottom part of the table.
• Easy to control wind and intuitive display of fan level. (maximum 240m3/h)
• Better safe use of chemicals with durability and spark-free BLDC motor.
• The appropriate filter is selected according to the experiment environment. (option)
• Single / Dual arm, arm diameter, and hood are selected according to the usage environment. (option)

Use Convenience Features

• Pre-filter built in to extend other filter life.
• Up to 2 filters can be installed depending on the material used. (option)
  ※ Example of filter configuration
  HEPA Filter for removing dust and carbon filter for removing/neutralizing harmful gas.
• Soft wheels for easy movement and fixing.
• Low fan speed notification when fan speed is low.

Examples Of Diverse Applications

•

  Single Arm

  General configuration for 100% suction performance.

•

  Dual Arm

  Space-efficient configuration with two hoods used.

•

  Harmful gas purifier

  Purification of harmful gases and fine dust in the experiment space.

•

  Laboratory table integral structure

  Maximal space utilization with placement of the lower part of the testing bench.

Specification

Accessories and Options

Extraction Filter Systems

Various applications

Cat. No.	Description	Suitable for
AAHB6312	EFS-33-50S, Single hole	AH-50
AAHB6313	EFS-33-50D, Double holes
AAHB6314	EFS-33-75S, Single hole	AH-75
AAHB6315	EFS-33-75D, Double holes

※ 230V, 50/60Hz, 1.5A.

Electron microscope image of Lab Companion’s carbon filter.

The Lab Companion’s carbon filter is an excellent amorphous adsorbent with a high surface area, has fine pores and is manufactured through a multi-level impregnation process. Made of 100% impregnated filter, it is more than twice as efficient as general filters. Has the efficiency of an excellent composite filter as it simultaneously performs physical adsorption and chemical adsorption.

Filters

Cat. No.	Filter	Description
AAAB6354	Complex carbon filter	Filters a wide range of chemicals, including acid, ammonia, and aldehyde.
AAAB6356	Acid filter 1)	Filters acid gases such as HCl, HF, H2S and CH3COOH.
AAAB6358	Formaldehyde filter	Filters formaldehyde, acete aldehyde, etc.
AAAB6359	Ammonia / Amines filter	Filters basic gases such as NH3, (CH3)3N, etc.
AAAB6353	HEPA filter	Filters 99.99% of toxic dust and other 0.3 μm particles
AAAB6360	Pre filter	Primarily filters particles to extend the life of other filters.

1) Please do not use high percentage of reactive acid such as perchloric acid.
※ Select a suitable filter according to the chemical used.
※ For the built-in pre-filter, the Particle is filtered first to extend the life of the other filter.

AH-50 with dome hood

Cat. No.	Joint	Length (mm / inch)
		A	B	C	D	Total
AAAB6552	2	250/9.8	–	440/17.3	250/9.8	940/37
AAAB6554			–	640/25.2		1140/44.9
AAAB6562	3		540/21.3	440/17.3		1480/58.3
AAAB6563			640/25.2	540/21.3		1680/66.1

AH-75 with basic hood

Cat. No.	Joint	Length (mm / inch)
		A	B	C	D	Total
AAAB6511	2	250/9.8	–	530/20.9	260/10.2	1040/40.9
AAAB6541	3		640/25.2			1680/66.1

Cat. No.	Description	Suitable for
AAAB6221	Dome hood (polypropylene, white, ØxH 400×140 mm / 15.7×5.5 inch)	AH-75
AAAB6211	Dome hood (styrene butadiene copolymer, transparent, ØxH 400×140 mm / 15.7×5.5 inch)
AAAB62411	Square hood (polypropylene, white, WxDxH 494x390x245 mm / 19.4×15.4×9.6 inch)
AAAB6231	Square hood (styrene butadiene copolymer, transparent, WxDxH 494x390x245 mm / 19.4×15.4×9.6 inch)
AAAB6250	Magnetic System1) （styrene butadiene copolymer, transparent) Dome : (ØxH 400×140 mm / 15.7×5.5 inch) Square : (WxDxH 494x390x245 mm / 19.4×15.4×9.6 inch)
AAAB6352	Table bracket set (bracket + flexible duct) (WxDxH 165x254x110mm / 6.5x10x4.3 inch)	AH-75
AAAB6351	Table bracket set (bracket + flexible duct) (WxDxH 165x254x110mm / 6.5x10x4.3 inch)	AH-50
