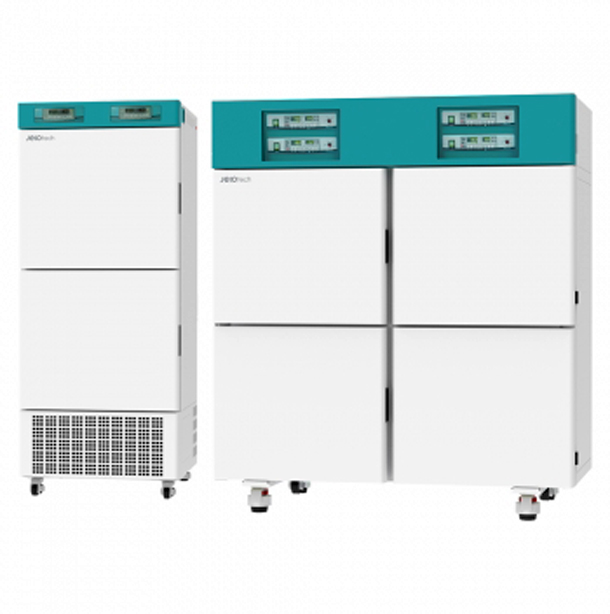

Low Temperature Incubator (Multi type, Forced Convention)
Brand: JeioTech
Model: IL-11-2C/4C
Origin: Korea
Availability: It will be available within 2-3 weeks.
Features
Efficient lab space use with multi-chamber incubator
- Designed to offer an ideal and cost-effective solution for laboratories with limited space and budget.
– Two or four 150L chambers merged into a single unit. - Optimum model selection between two and four chamber unit according to application demand.
- Suitable for conducting each different experiment at once.
– Independent temperature and timer control of each chamber using microprocessor PID.
Performance
- Temperature range from 0℃to 60℃.
– Silent cooling system reduces water evaporation within the chamber. - Microprocessor PID control.
- Temperature calibration.
- Automatic tuning.
- Adjustable 3-step fan speed with defrosting time and period control.
Convenience
- Intuitive control panel with bright LED display. (0.1℃resolution)
- Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.)
- Convenient preset function for 3 most commonly used temperature settings.
- Up to 9 temperature steps and maximum 200 cycles of repetition programmable for each profile.
- Convenient sample monitoring without affecting chamber temperature via the inner tempered-glass door.
- Rounded inner chamber corners for easy cleaning and optimal airflow.
- Built-in casters for easy transport and installation.
Safety
- Automatic run after power interruption.
- Keypad lock function prevents accidental changes during operation.
- Over-temperature and over-current protection.
- Audible and visible open door alarms.
Specification
| Model | IL-11-2C | IL-11-4C | |
|---|---|---|---|
| Chamber volume (L / cu ft) | 150 / 5.3 x 2 chambers | 150 / 5.3 x 4 chambers | |
| Refrigerator (Hp) | 1/8 HBP x 2EA | 1/8 HBP x 4EA | |
| Temperature | Range (℃ / ℉) | 0 to 60℃ / +32 to 140℉ | |
| 1)Fluctuation at 25℃ (±℃ / ℉) | 0.1 / 0.18 | ||
| 1)Variation at 25℃ (±℃ / ℉) | 0.5 / 0.9 | ||
| Dimension(W×D×H) | Interior (mm / inch) | 600x500x500 / 23.6×19.7×19.7
x 2 chambers |
600x500x500 / 23.6×19.7×19.7
x 4 chambers |
| Exterior (mm / inch) | 760x760x1690/ 29.9×29.9×66.1 | 1500x760x1690/ 59.1×29.9×66.1 | |
| No. of wire shelf (standard / max.) | 2 / 11 per chamber | 2 / 11 per chamber | |
| Net weight (Kg / lbs) | 180 / 397 | 350 / 772 | |
| Electrical requirements (230V, 60Hz) | 9A | 9A x 2EA | |
| Cat. No. | AAH28111K | AAH28011K | |
| Electrical requirements (230V, 50Hz) | 9A | 9A x 2EA | |
| Cat. No. | AAH28112K | AAH28012K | |
| Electrical requirements (120V, 60Hz) | 16.5A | 16.5A x 2EA | |
| Cat. No. | AAH28113U | AAH28013U | |
Accessories and Options
-
Wire shelves
-
Perforated shelves
Wire shelves
Stainless steel and electro-polished shelves are readily removed without using tools for easy cleaning.
| Cat. No. | Description | Suitable for | ||
|---|---|---|---|---|
| Included | Maximum | W×L (mm / inch) | ||
| 00EDA0008219 | 4 | 24 | 566×466 / 22.3×17.6 | IL-11-2C |
| 8 | 48 | IL-11-4C | ||
Perforated shelves
Stainless steel shelves are readily removed without using tools for easy cleaning.
| Cat. No. | Description | Suitable for | |
|---|---|---|---|
| Maximum | W×L (mm / inch) | ||
| AAA22521 | 24 | 566×466 / 22.3×17.6 | IL-11-2C |
| 48 | IL-11-4C | ||
