Incubator (General / Economy)
Brand: Jeio Tech
Model: IB4-03AS, 05AS, 10AS, 15AS
Origin: Korea
Availability: In Stock
An air-jacket type of incubator, standard type
Features
Intuitive Touch Controller
- Intuitive interface with 3.5-inch display.
- ‘Wait on / Wait off’ timer function.
-

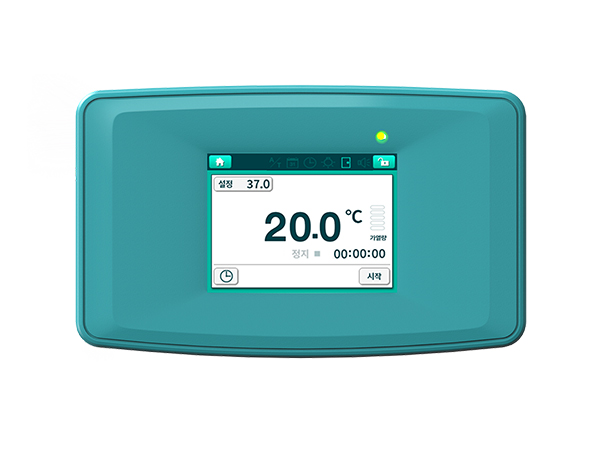

3.5-inch touch display
-

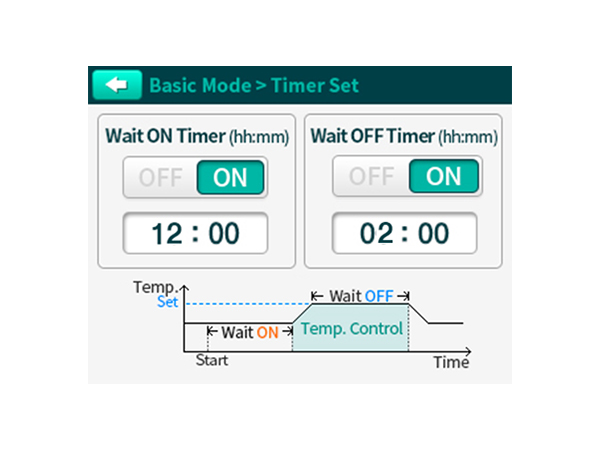

Wait on & Wait off timer
Reliable Temperature Control Performance
- Temperature accuracy for wide range by 3-point calibration.
- The upper and lower temperature limits can be set, enabling alerts for deviations to trigger quick actions.
- Uniform temperature distribution through airflow optimized for uniform heat transfer. (within ±0.55 ℃ at 37℃)
-

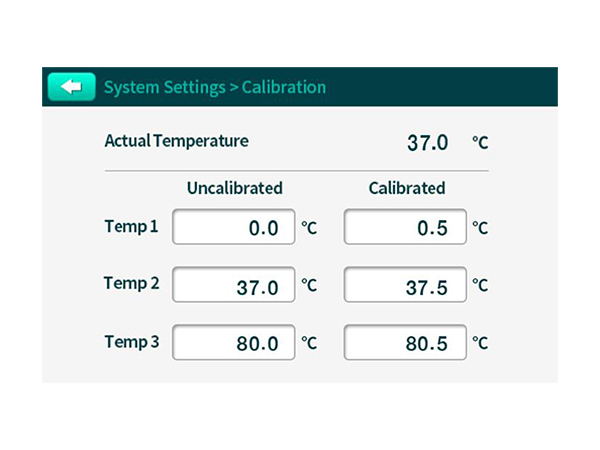

Accurate temperature control with 3-point calibration
-

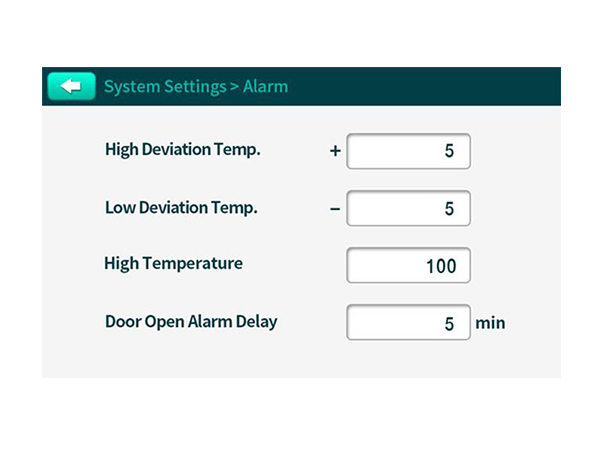

Settings for temperature deviation
Convenient Experiment and Data Checking
- Support RS-232/USB port and software making easy operation and data management from PC. (option)
- Monitor and control anywhere, anytime with LC GreenBox. (Mobile Monitoring System, option)
- Monitor the temperature on BMS (Building Management System) for quick responses to abnormalities. (option)
- Integrated with 21 CFR Part 11 compliant LC DataKeeper, suitable for GMP audits. (option)
-

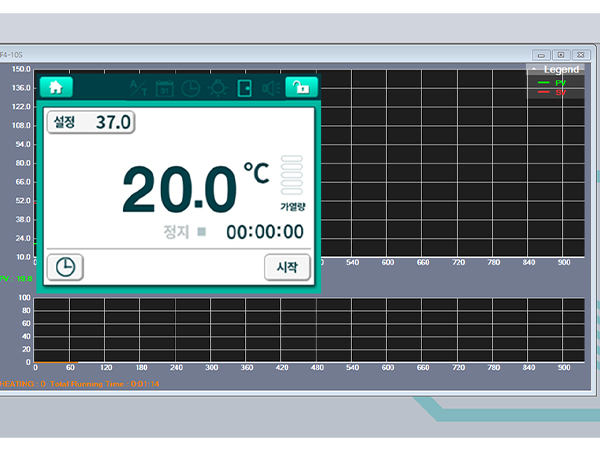

Manipulation via PC (option)
-

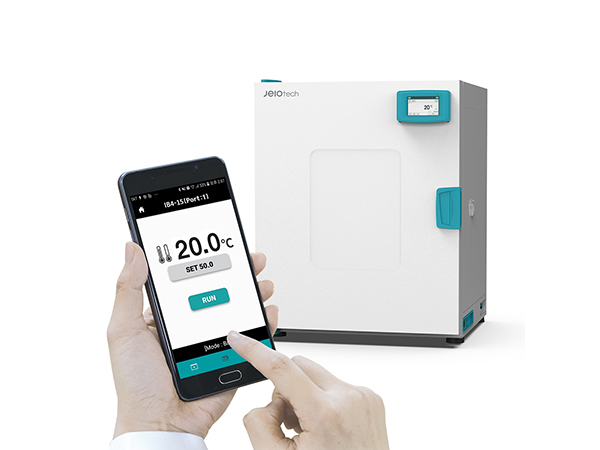

Real-time monitoring via mobile devices (LC GreenBox: option)
Enhanced Safety and Convenience
- Implemented with the highest-level overheating prevention system. (Patent 10-0397583)
- Over Temperature Limiter.
- Complaint to IEC Class II protection standards and temperature protection in line with DIN 12880 Class 3.1.
- Logs the last 12 events, including run times, stops, and errors.
- Double stackable with stacking set (option) maximizes space utilization.
-

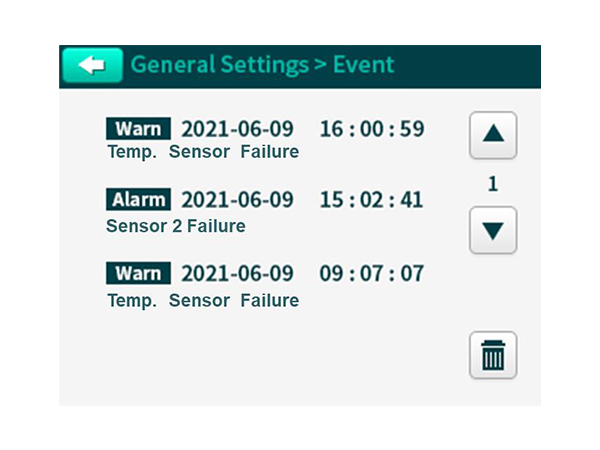

Logs the recent 12 events
-

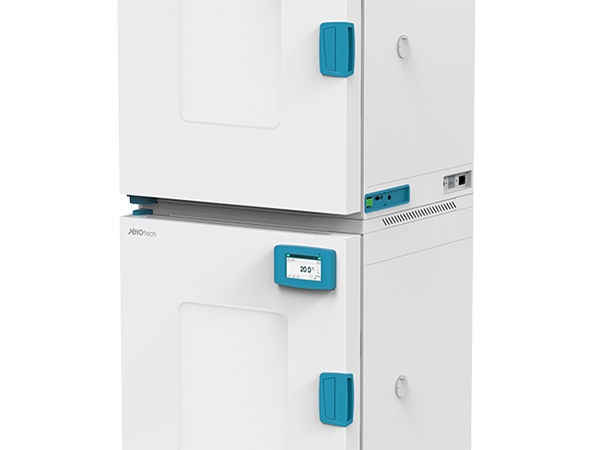

Increased space utilization by double stacking (stacking set : option)
* Double stacking example: (top) forced convection oven / (bottom) forced convection incubator
Multiple Features to Minimize Incubation Failure
- Using Water tray delays media drying, making incubation time longer. (option)
- Automatically resume the control of previous operations when restored within 30 seconds from blackouts.
- Controller can be locked with the button on the top, preventing any actions from unintended pressing.
- Abnormalities are notified with audiovisual alerts to trigger quick actions.
-

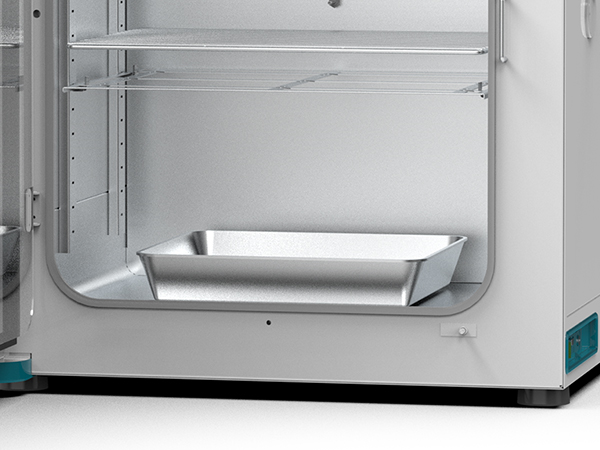

Water tray that minimizes media drying (option)
-

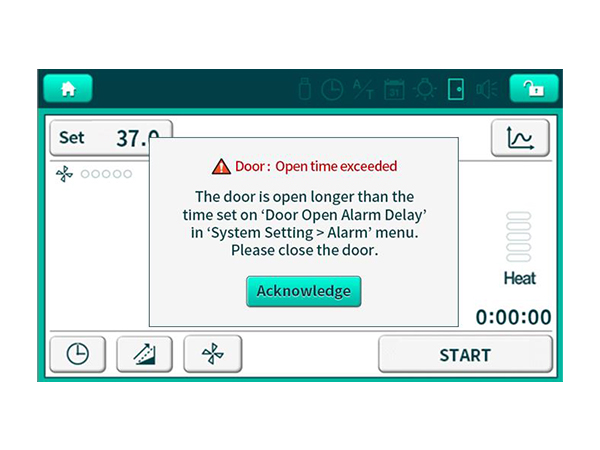

Audiovisual alerts to notify abnormalities
Specification
| Model | IB4-03AS | IB4-05AS | IB4-10AS | IB4-15AS | |
|---|---|---|---|---|---|
| Chamber volume (L / cu ft) | 25 / 0.88 | 60 / 2.19 | 114 / 4.03 | 150 / 5.30 | |
| Temperature | Range (℃ / ℉) | Amb. +5 to 80 / Amb. +9 to 176 | |||
| Fluctuation at 37℃ (±℃ / ℉) | 0.10 / 0.18 | 0.10 / 0.18 | 0.15 / 0.27 | 0.10 / 0.18 | |
| Variation at 37℃ (±℃ / ℉) | 0.31 / 0.56 | 0.48 / 0.86 | 0.46 / 0.83 | 0.55 / 0.99 | |
| Heating time to 37℃ (min.) 1) | 44 | 40 | 46 | 49 | |
| Recovery time at 37℃ (min.) | 5 | 9 | 9 | 9 | |
| Control panel | 3.5 inch TFT Color LCD | ||||
| Communication interface | USB-B, RS-232 (option) | ||||
| Function | Recently event record | 12 ea | |||
| Dimension (W×D×H) |
Interior (W x D x H, mm / inch) | 300 x 210 x 400 /11.81 x 8.27 x 15.75 |
380 x 330 x 480 /14.96 x 12.99 x 18.9 |
485 x 350 x 655 / 19.1 x 13.78 x 25.79 |
550 x 376 x 710 / 21.62 x 14.8 x 27.95 |
| Exterior (W x D x H, mm / inch) | 478 x 527 x 604 / 18.8 x 20.75 x 23.78 |
558 x 648 x 684 / 21.97 x 25.5 x 26.93 |
663 x 677 x 859 / 26.1 x 26.65 x 33.82 |
728 x 704 x 914 / 28.66 x 27.7 x 36.0 |
|
| Net weight (Kg / lbs) | 32 / 68.34 | 40 / 88.18 | 55 / 121.25 | 60 / 132.28 | |
| Shelves | Quantity of shelves (standard/max.) | 2 / 4 | 2 / 5 | 2 / 8 | 2 / 9 |
| Max. Load per shelf (Kg / lbs) | 20 / 44.09 | 20 / 44.09 | 20 / 44.09 | 20 / 44.09 | |
| Electrical requirements (230V, 50 / 60Hz, A) | 2.5 | 3.5 | 3.5 | 3.5 | |
| Cat. No. |
AAH21555K | AAH21565K | AAH21575K | AAH21585K | |
| Electrical requirements (120V, 60Hz, A) | 4.8 | 6.7 | 6.7 | 6.7 | |
| Cat. No. |
AAH21553U | AAH21563U | AAH21573U | AAH21583U | |
Accessories and Options
-

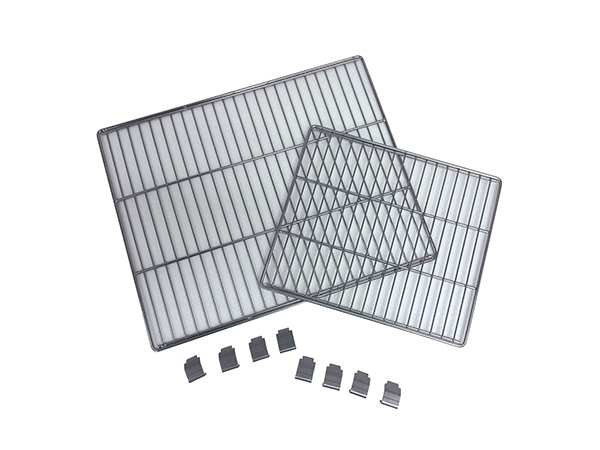

Wire shelf (2 shelves included in the basic product)
- Stainless Steel.
- Uniform temperature distribution based on high air permeability.
-

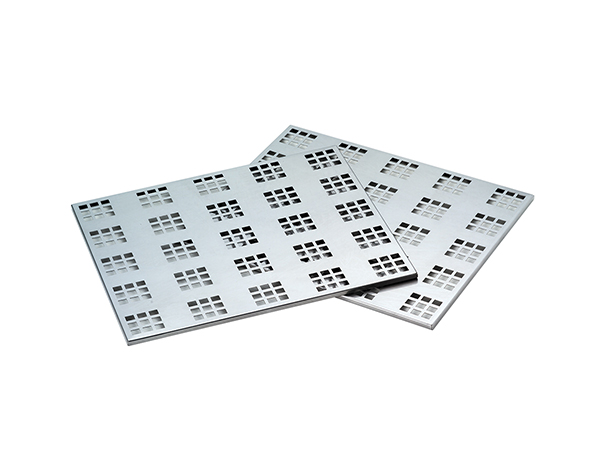

Perforated shelf
- Stainless Steel.
- Robust structure is ideal for heavy load samples.
-
Stacking Set
- Double stackable.
- Firm stacking allows efficient utilization of space.
- (※ When double stacking, the minimum control temperature of the upper chamber may be limited due to the heat generated by the lower chamber)
-
LC DataKeeper
- High-integrity software compliant with FDA 21 CFR Part 11.
- Integrated with JEIOTECH equipment to undergo GMP audits.
-

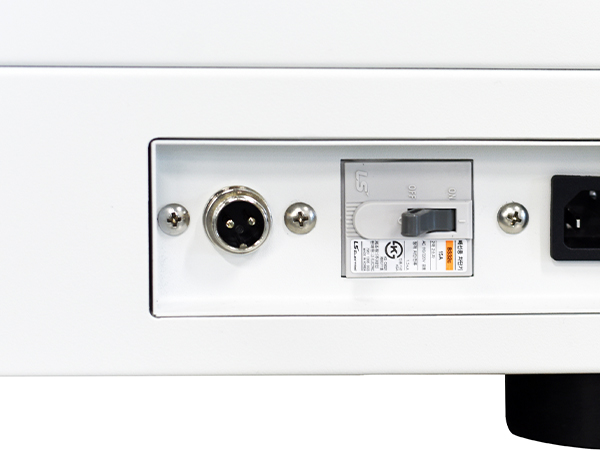

BMS Port
- Real-time equipment monitoring from a central monitoring facility.
- Useful for safety management at laboratories that operate multiple devices.
-

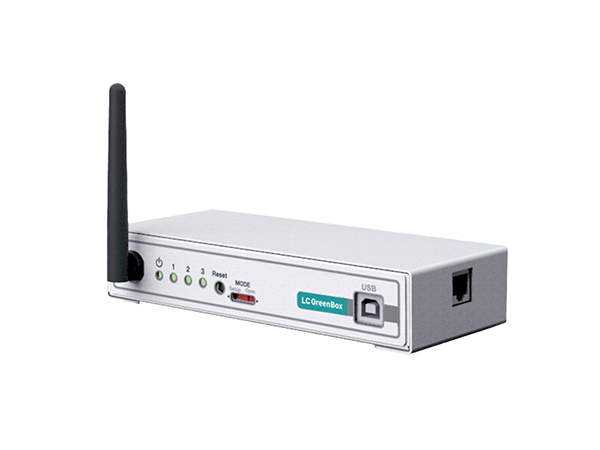

LC GreenBox (Mobile Monitoring System)
- Real-time monitoring and control via mobile app.
- Can connect up to four devices to a single LC GreenBox.
- Communication port connectivity via a RS-232 port.
-
Communication Port
- Allows PC-connection control and data extraction via dedicated software.
- Standard for IB4-V model, optional for IB4-S model.
-
Water Tray
- Stainless Steel.
- Minimizes media drying and extends incubation time for liquid media.
| Shelves and Bracket | IB4-03 | IB4-05 | IB4-10 | IB4-15 |
|---|---|---|---|---|
| Wire shelf | FDA9739 | FDA9738 | FDA9737 | FDA9736 |
| Perforated shelf | AAA125341 | AAA125342 | AAA125343 | AAA125344 |
| Stacking set | – | AAA125547 | – | AAA125549 |
| BMS Port | AAA125534 | |||
| Communication Port | AAA125533 | |||
| Water Tray | AAA125443 | AAA125444 | AAA125445 | AAA125445 |
| LC GreenBox | AAHQ1011K | |||
| LC DataKeeper Basic | SSA11001 | |||
| LC DataKeeper Pro | SSA11002 | |||
