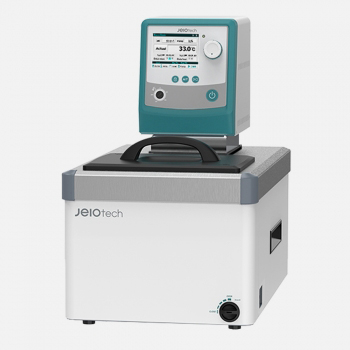

Heating Bath Circulator (Program)

Intelligent program control

• 10 programs available for temperature ramp up and dwell control.
• 10 steps per a program and 99 hours 59 minutes per a step.
• Stored programs are easily linkable.
• Programs can be repeated up to 99 cycles.
• Pre-heating and heating time are settable before program starts.

Performance

• Temperature range from ambient +10℃ to 150℃.
• Microprocessor PID control.
• Three point temperature calibration / Automatic tuning / Automatic run.
• Accurate, stable, and efficient temperature management by using a powerful variable-speed pump. (1 to 3 steps of pump for internal circulation and 4 to 5 steps for external circulation)
• Powerful pump pressure and flow rate throughout the whole temperature range.

Convenience

• Intuitive touch screen LCD controller with easy icons and logical menus.
• Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.)
• Digital input and output control function for interlocking external devices.
• Corrosion-resistant, leak-proof, round-cornered, and easy-to-clean stainless steel bath with easy access drain valve.
• RS-232 / USB interface for external control and data collection.
• Built-in casters and side handles for easy transport and installation.
• Monitor via mobile app anytime, anywhere with LC Connected (mobile monitoring system) connection.(when purchased LC GreenBox)

Safety

• Isolated design of agitator, heater, and sensor by a baffle plate to minimize the turbulence in the bath fluid and also to protect users and samples against direct contact.
• Temperature warning indicator simply shows inner reservoir’s temperature by three different colors.
• Complete safety protection system with warning alarms.
  – Low fluid level and dry-running, over-temperature, over-current.
• Keypad lock function prevents accidental changes during operation.
• Splash-proof keypad.

Stainless Steel Cover

Sturdy, corrosion-resistant, stainless steel material.

Cat. No.	Model
AAA51531	RW3-0525(P), RW3-0535(P), CW3-05(P)
AAA51532	RW3-1025(P), RW3-1035(P), CW3-10(P)
AAA51533	RW3-2025(P), RW3-2035(P), CW3-20(P)
AAA51534	RW3-3025(P), RW3-3035(P), CW3-30(P)



Test Tube Racks

Highly durable stainless steel test tube racks feature adjustable angle and tube height support without requiring any base plate. You can easily mount and release test tube racks.

Cat. No.	Description		Insert Capacity of Racks*
AAA44581	for 86 test tubes	Ø8mm / Ø0.3˝	CW3-20(P): 2ea CW3-30(P): 2ea RW3-2025(P): 2ea RW3-2035(P): 2ea RW3-3025(P): 2ea RW3-3035(P): 2ea
AAA44582	for 86 test tubes	Ø10mm / Ø0.4˝
AAA44583	for 58 test tubes	Ø12mm / Ø0.5˝
AAA44585	for 32 test tubes	Ø16mm / Ø0.6˝
AAA44586	for 19 test tubes	Ø25mm / Ø1.0˝
AAA41531	for 50 test tubes	Ø8mm / Ø0.3˝	CW3-10(P): 1ea RW3-1025(P): 1ea RW3-1035(P): 1ea
AAA41532	for 50 test tubes	Ø10mm / Ø0.4˝
AAA41533	for 33 test tubes	Ø12mm / Ø0.5˝
AAA41535	for 16 test tubes	Ø16mm / Ø0.6˝
AAA41539	for 10 test tubes	Ø25mm / Ø1.0˝

* No declination.

Spring Wire Racks

Ideal for holding a wide variety of tubes, flasks, and other glassware. All components are made of stainless steel. (for all models)

Cat. No.	Suitable for
AAA51522	CW3-20(P), RW3-2025(P), 2035(P)
AAA51523	CW3-30(P), RW3-3025(P), 3035(P)

LC GreenBox

Real-time monitoring and control of device operation via mobile app.
Up to 4 devices can be connected at once.

Cat. No.	Description		Suitable for
AAHQ1011K	LC GreenBox (2.4GHz, 100~240V, 50/60Hz)		CW3, RW3 models
