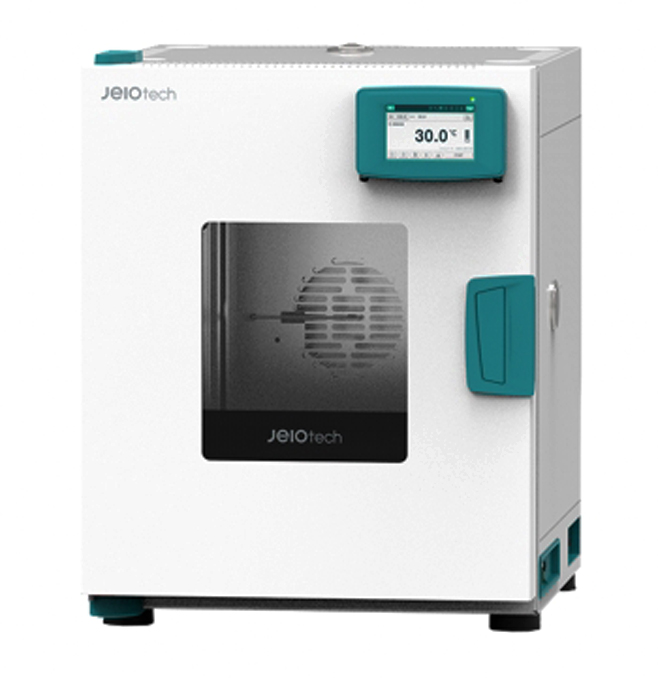

Forced Convection Ovens (Program, OF4-P)
Brand: JeioTech
Model: OF4-03P(W) / 05P(W) / 10P(W) / 15P(W)
Origin: Korea
Availability: It will be available within 2-3 weeks.
Description
Features
Easy setting program temperature for everyone
- User interface that provides a quick view of temperature changes
(heating, stable, and cooling) and fan speed also. - Set various test condition using 10 programs and 10 steps, which can be repeated up to 99 times.
- Start temperature, temperature and time for each step, and Opti-flowTM all adjustable as desired.
Easy and intuitive program setting interface
Program setting can be flexibly adjusted according to each test requirement
Structural and functional features for improved user convenience
- Opti-flow™, a function to flexibly adjust the fan speed
according to the specimen type and test conditions. - Stacking Kit (optional) ensuring the safe fitting of one unit
to another, thus doubling the amount of work done in a given area for improved space efficiency. - Hands-free™ door system to allow users to easily open
the door while carrying samples with both hands.
Fan speed can be adjusted manually according
Two-unit stacking for improved space efficiency (option)
Real-time monitoring to check status of device
- BMS communication port that helps monitor the device temperature on the building management system, enabling quick response in case of abnormality. (option)
- Monitor and control via mobile app anytime, anywhere with LC Connected. (mobile monitoring system) (option)
BMS communication port that helps enable quick response through continuous monitoring (option)
Real-time monitoring and control via mobile (option)
Convenient checking for the test progress and data
- RS-232/USB port and compatible software provided to enable easy device control and data management using PC.
- Test data is automatically saved and easily downloaded via USB;
easy to edit and use. (in CSV format) - 36 latest events, such as errors and door opened or closed, automatically recorded, helping user obtain feedback on experimental results.
- Integrated with 21 CFR Part 11 compliant LC DataKeeper, suitable for GMP audits (option)
Data storage using USB ports
Up to 36 latest events automatically recorded
Reliable temperature control performance based on stable control mechanisms
- Wide temperature range of up to 250℃.
- Three-point temperature calibration that ensures high temperature accuracy over a wide temperature range.
- Ramping rates (℃/min) flexibly adjustable for each test performed.
- Excellent temperature distribution through the formation of optimal airflow for uniform heat transfer.
(±1.9℃ or below at 100℃)
Three-point temperature calibration that ensures precise temperature control
Ramping rates adjusted for each test performed
Specification
Spec
| Model | Solid door (without window) | OF4-03P | OF4-05P | OF4-10P | OF4-15P | |||
|---|---|---|---|---|---|---|---|---|
| Window door | OF4-03PW | OF4-05PW | OF4-10PW | OF4-15PW | ||||
| Chamber volume (L/cu ft) | 26/0.92 | 61/2.15 | 112/3.96 | 147/5.19 | ||||
| Temperature 1) | Range (℃/℉) | Amb. + 10~250 / Amb. + 18 ~ 482 | ||||||
| Fluctuation at 100℃ (±℃/±℉) | 0.3/0.54 | 0.3/0.54 | 0.3/0.54 | 0.3/0.54 | ||||
| Variation at 100℃ (±℃/±℉) | 1.4/2.52 | 1.9/3.42 | 1.7/3.06 | 1.5/2.70 | ||||
| Heating time to 100℃ (min) | 8 | 10 | 14 | 15 | ||||
| Recovery time at 100℃ (min) | 4 | 4 | 4 | 4 | ||||
| Control Panel | 5inch TFT Color LCD | |||||||
| Communication interface | USB, RS-232, BMS | |||||||
| Function | Program setting | 10 program, 10 step, start temp. | ||||||
| Scehdular | Set day, time, and program No | |||||||
| Recently event record | 36ea | |||||||
| Fan speed adjustable | Three-step wind speed settings | |||||||
| Recommended temperature | Three frequently used temperature settings suggested | |||||||
| Graph | Available checking the stored and real-time data as graphs | |||||||
| Data storage | Save the test data in CSV format | |||||||
| Temp. ramping rate (℃/min. / ℉/min.) | 0~13/0~23.4 | 0~9/0~16.2 | 0~6/0~10.8 | 0~5/0~9 | ||||
| Dimensions | Interior (W x D x H, mm/inch) | 300 x 210 x 400 / 11.80 x 8.27 x 15.75 |
380 x 330 x 480 / 14.97 x 13.0 0x 18.90 |
485 x 350 x 655 / 19.09 x 13.78 x 25.79 |
550 x 376 x 710 / 21.65 x 14.80 x 27.95 |
|||
| Exterior (W x D x H, mm/inch) | 478 x 527 x 604 / 18.82 X 20.75 X 23.78 |
558 x 648 x 684 / 21.97 X 25.51 X 26.93 |
663 x 677 x 859 / 26.1 X 26.65 X 33.82 |
728 x 704 x 914 / 28.66 X 27.72 X 35.98 |
||||
| Net weight (kg/lbs) | 33/72.8 | 53/116.8 | 63/138.9 | 73/160.9 | ||||
| Shelves | Quantity of shelves (Standard/max.) | 2/4 | 2/5 | 2/8 | 2/9 | |||
| Max. Load per shelf (kg/lbs) | 30/66.1 | |||||||
| Number of Air change per hour at 100 ℃ 2) | 123 | 22 | 18 | 11 | ||||
| Electrical requirements (230V, 50/60Hz, A) | 6.4 | |||||||
| Cat. No. | Solid door (without window) | AAH12915K | AAH12925K | AAH12935K | AAH12945K | |||
| Window door | AAH12955K | AAH12965K | AAH12975K | AAH12985K | ||||
| Electrical requirements (120V, 60Hz, A) | 12.3 | |||||||
| Cat. No. | Solid door (without window) | AAH12916U | AAH12926U | AAH12936U | AAH12946U | |||
| Window door | AAH12956U | AAH12966U | AAH12976U | AAH12986U | ||||
1) This data was measured when the fan speed was set to Step 5. If the fan speed is set to Step 1 or Step 3, the fluctuation and variation values will increase. (According to DIN 12880, before 2013)
2) This data was measured when the fan speed was set to Step 5. If the fan speed is set to Step 1 or Step 3, the number of air changes may decrease. (According to ASTM D 5374, reapproved 1999)
2) This data was measured when the fan speed was set to Step 5. If the fan speed is set to Step 1 or Step 3, the number of air changes may decrease. (According to ASTM D 5374, reapproved 1999)
Dimensions
- Exterior
- Interior
(unit: mm / inch)
| Model | OF-03P | OF4-05P | OF4-10P | OF4-15P | |
|---|---|---|---|---|---|
| A: Maximum depth with door opened | 868 / 34.2 | 1060 / 41.7 | 1185 / 46.7 | 1271 / 50.0 | |
| B: Maximum width with door opened | 695 / 27.4 | 809 / 31.9 | 958 / 37.7 | 1050 / 41.3 | |
| C: Interior width | 300 / 11.8 | 380 / 15.0 | 485 / 19.1 | 550 /21.7 | |
| D: Interior height | 400 / 15.7 | 480 / 18.9 | 655 / 25.8 | 710 / 28.0 | |
| E: Interior depth | 210 / 8.3 | 330 / 13.0 | 350 / 13.8 | 376 / 14.8 | |
| F: Shelve width | 266 / 10.5 | 346 / 13.6 | 451 / 17.8 | 516 / 20.3 | |
| G: Shelve depth | 195 / 7.7 | 315 / 12.4 | 335 / 13.2 | 361 / 14.2 | |
| H: Gap between shelf racks | 30 / 1.2 | 30 / 1.2 | 30 / 1.2 | 30 / 1.2 | |
| I: Gap between uppermost shelve and interior ceiling | 80 / 3.1 | 90 / 3.5 | 88 / 3.5 | 85 / 3.3 | |
| J: Space for sensor installation | 3.8 / 0.15 | 3.8 / 0.15 | 3.8 / 0.15 | 3.8 / 0.15 | |
Accessories and Options
for Forced / Natural convection ovens
Wire shelf (Include 2ea as standard)- · Stainless Steel
- · Excellent air permeability and uniform temperature distribution.
Perforated shelf- · Stainless Steel
- · Solid structure makes it suitable for high load samples.
Double-stacked bracket- · Use for stacking 2 units.
- · Improve space efficiency with the sturdy stacking.
※ When install the double-stacked bracket, the temperature control range of the upper oven is decrease
(Amb.+30 ~ 250℃ / Amb.+54 ~ 482℉)
BMS Port- · Real-time monitoring at a central monitoring facility.
- · Easier to ensure safety, especially in labs where multiple units are operated.
LC GreenBox(Mobile Monitoring System)- · Remote monitoring and control via mobile application.
- · One LC GreenBox can connect up to 4 devices.
- · Connect using RS-232 port on the communication port.
Communication Port- · Control PC connection and data by dedicated software.
- · Included as default in OF4-P/V and ON4-V and optional for OF4-S and ON4-S
| Model | OF4-03 | OF4-05 | OF4-10 | OF4-15 |
|---|---|---|---|---|
| Wire shelf | 00FDA0009739 | 00FDA0009738 | 00FDA0009737 | 00FDA0009736 |
| Perforated shelf | AAA125341 | AAA125342 | AAA125343 | AAA125344 |
| Double-stacked bracket | AAA125531 | AAA125532 | ||
| Model | OF4-P/V | OF4-S |
|---|---|---|
| BMS port | AAA125534 | |
| LC GreenBox | AAHQ1011K | |
| Communication port | standard | AAA125523 |
LC DataKeeper
· High-integrity software compliant with FDA 21 CFR Part 11
· Integrated with Jeio Tech equipment to undergo GMP audits
| Model | OF4-P/V | OF4-S |
|---|---|---|
| LC DataKeeper Basic | SSA11001 | |
| LC DataKeeper Pro | SSA11002 | |
