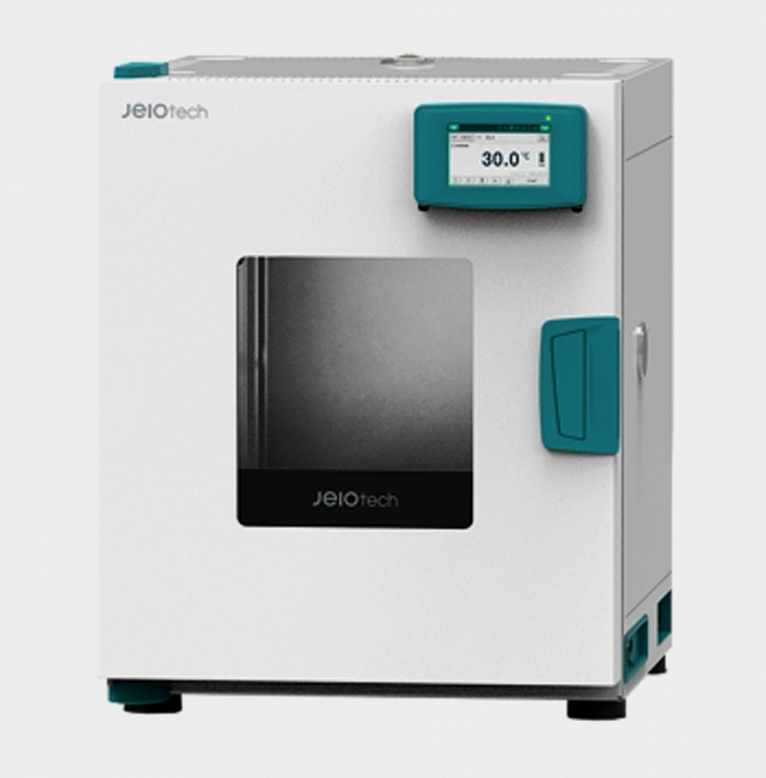

Natural Convection Oven (Advanced, ON4-V)
Brand: JeioTech
Model: ON4-03V/VW, 05V/VW, 10V/VW, 15V/VW
Origin: Korea
Availability: It will be available within 2-3 weeks.
Features
Intuitive Large Touch Controller
- Intuitive interface with 5-inch display.
- Events and alerts in a single view with real-time graph.
- Three frequent temperatures automatically suggested.
- ‘Wait on / Wait off’ timer function.
-
Large intuitive display
-
Graphs for real-time process monitoring
Convenient Structural Functions
- Designed with a depth of less than 750 mm, making it easy and stable on a lab table.
- Uniform and stable temperature distribution with multi-path airflow improves reliability of experiment data.
-
Depth of less than 750 mm allows stable positioning on lab table
-
Uniform temperature control with multi-path airflow
Supervise Equipment with Real-time Monitoring
- Monitor the temperature on BMS (Building Management System) for quick responses to abnormalities. (option).
- Monitor and control anywhere, anytime with LC GreenBox (Mobile Monitoring System, option).
-
Timely responses via BMS-connected monitoring (BMS port: option)
-
Real-time monitoring via mobile devices (LC GreenBox: option)
Convenient Experiment and Data Checking
- Support RS-232/USB port and software making easy operation and data management from PC.
- Test data are automatically stored and easily exported via USB; easy to edit data (in CSV format).
- Logs 36 recent events, including errors, opened door, etc.
- Integrated with 21 CFR Part 11 compliant LC DataKeeper, suitable for GMP audits (option).
-
Data storage using USB ports
-
Store recent 36 events
Reliable Temperature Control Performance
- Wide temperature range of up to 250℃.
- Temperature accuracy for wide range by 3-point calibration.
- Ramp Control™, function that controls the rate of temperature rise by setting ramping rate(℃/min) per experiment.
- Uniform temperature distribution through airflow optimized for uniform heat transfer (within ±3.6 ℃ at 100℃).
-
Accurate temperature control with 3-point calibration
-
Ramp Control™ per experiment condition
Specification
| Model | Solid Door (without window) | ON4-03V | ON4-05V | ON4-10V | ON4-15V |
|---|---|---|---|---|---|
| Window door | ON4-03VW | ON4-05VW | ON4-10VW | ON4-15VW | |
| Chamber volume (L / cu ft) | 26 / 0.92 | 58 / 2.05 | 110 / 3.88 | 147 / 5.19 | |
| Temperature | Range (℃ / ℉) | Amb. +15 to 250 / Amb. +59 to 482 |
Amb. +15 to 250 / Amb. +59 to 482 |
Amb. +15 to 250 / Amb. +59 to 482 |
Amb. +15 to 250 / Amb. +59 to 482 |
| Fluctuation at 100℃ (±℃ / ℉) | 0.4 / 0.72 | 0.5 / 0.90 | 0.5 / 0.90 | 0.5 / 0.90 | |
| Variation at 100℃ (±℃ / ℉) | 2.8 / 5.04 | 2.6 / 4.68 | 3.6 / 6.48 | 3.5 / 6.30 | |
| Heating time to 100℃ (min.) 1) | 25 | 39 | 22 | 21 | |
| Recovery time at 100℃ (min.) | 17 | 19 | 10 | 9 | |
| Control panel | 5 inch TFT Color LCD | ||||
| Communication interface | USB-B, RS-232 | ||||
| Function | Recently event record | 36 ea | |||
| Recommended temperature | Suggest three frequently used temperature | ||||
| Graph | Available viewing stored and real-time graphs | ||||
| Data storage | Save your experiment data (in CSV format) | ||||
| Temp. ramping rate (℃/min. | ℉/min) | 0 to 2.2 | 0 to 3.96 | 0 to 2 | 0 to 3.6 | 0 to 4.4 | 0 to 7.92 | 0 to 2.6 | 0 to 4.68 | |
| Dimension (W×D×H) |
Interior (W x D x H, mm / inch) | 273 x 270 x 350 / 10.75 x 10.63 x 13.78 |
340 x 390 x 422 / 13.4 x 15.35 x 16.61 |
441 x 420 x 597 / 17.36 x 16.54 x 23.5 |
500 x 446 x 659 / 19.69 x 17.56 x 25.95 |
| Exterior (W x D x H, mm / inch) | 478 x 527 x 604 / 18.8 x 20.75 x 23.78 |
558 x 648 x 684 / 21.97 x 25.5 x 26.93 |
663 x 677 x 859 / 26.1 x 26.65 x 33.82 |
728 x 704 x 914 / 28.66 x 27.7 x 36.0 |
|
| Net weight (Kg / lbs) | 33 / 72.8 | 53 / 116.8 | 63 / 138.9 | 73 / 160.9 | |
| Shelves | Quantity of shelves (standard/max.) | 2 / 4 | 2 / 5 | 2 / 8 | 2 /9 |
| Max. Load per shelf (Kg / lbs) | 20 / 44.09 | 20 / 44.09 | 20 / 44.09 | 20 / 44.09 | |
| Number of air change per hour at 100℃ | 16 | ||||
| Electrical requirements (230V, 50 / 60Hz, A) | 3.2 | 3.5 | 5.7 | 7.4 | |
| Cat. No. |
Solid Door (without window) | AAH111105K | AAH111115K | AAH111125K | AAH111135K |
| Window door | AAH112105K | AAH112115K | AAH112125K | AAH112135K | |
| Electrical requirements (120V, 60Hz, A) | 6 | 6.7 | 10.9 | 14.2 | |
| Cat. No. |
Solid Door (without window) | AAH111106U | AAH111116U | AAH111126U | AAH111136U |
| Window door | AAH112106U | AAH112116U | AAH112126U | AAH112136U | |
Accessories and Options
-
Wire shelf (2 shelves included in the basic product)
- Stainless Steel.
- Uniform temperature distribution based on high air permeability.
-
Perforated shelf
- Stainless Steel.
- Robust structure is ideal for heavy load samples.
-
Stacking Set
- Double stackable.
- Firm stacking allows efficient utilization of space.
- (※ When double stacking, the minimum control temperature of the upper chamber may be limited due to the heat generated by the lower chamber)
-
LC DataKeeper
- High-integrity software compliant with FDA 21 CFR Part 11.
- Integrated with JEIOTECH equipment to undergo GMP audits.
-
BMS Port
- Real-time equipment monitoring from a central monitoring facility.
- Useful for safety management at laboratories that operate multiple devices.
-
LC GreenBox (Mobile Monitoring System)
- Real-time monitoring and control via mobile app.
- Can connect up to four devices to a single LC GreenBox.
- Communication port connectivity via a RS-232 port.
-
Communication Port
- Allows PC-connection control and data extraction via dedicated software.
- Standard for IB4-V model, optional for IB4-S model.
Shelves and Bracket
| Model | ON4-03 | ON4-05 | ON4-10 | ON4-15 |
|---|---|---|---|---|
| Wire shelf | FDA9739 | FDA9949 | FDA9950 | FDA9951 |
| Perforated shelf | AAA125341 | AAA125362 | AAA125363 | AAA125364 |
| Stacking set | – | AAA125531 | – | AAA125532 |
Ports
| Model | ON4-V | ON4-S |
|---|---|---|
| BMS Port | AAA125534 | |
| Communication Port | Standard | AAA125533 |
Software
| Model | ON4 |
|---|---|
| LC GreenBox | AAHQ1011K |
| LC DataKeeper Basic | SSA11001 |
| LC DataKeeper Pro | SSA11002 |
