Moisture Meter (H&M Version) is available in Bangladesh

Moisture Meter (H&M Version)

Brand: SCHMIDT

Model: Moisture Meter H&M Version

Origin: Germany

Availability: In Stock

Moisture meter according H&M standards to determine the residual moisture of yarn bobbins, rolls of fabric, etc.

Portable with analog display as H&M version, especially for H&M suppliers

Special Features

Easy to use textile moisture meter TEM H&M version for many applications and quick measurements

Multiple scale for direct readings for wool, rayon and cotton, as well as 0 – 100 scale for comparison tables used for other materials like Polyester, Polyamide and many material mixtures

Beside 2 needle electrodes a surface electrode is supplied with the textile moisture meter TEM H&M

A wide choice of needles, knifes and roller electrodes for many applications are available

High accuracy and reproducibility

Standard Features

Portable, battery-operated

Compact housing supplied in leather carrying case with neck strap

Optionally available: Manufacturers test certificate with calibration report

Measuring principle:
The moisture content is determined by measuring the electrical conductivity of the material which always is proportional to the content of the moisture.

Available Models

Model	Description
TEM-HM	Textile moisture meter with standard accessories and surface electrode
TEM	Textile moisture meter without standard accessories (only display unit)
	alternative
TEM-I	Textile moisture meter with standard accessories	more
DHT-3	Textile moisture meter with standard accessories and digital display	more

Measuring ranges:	Wool: 8 to 24.5% moisture content Rayon: 3 to 23% moisture content Cotton: 2 to 12% moisture content Comparison measurement: 0 – 100 scale
Battery:	9 V E-block
Weight net (gross):	Approx. 900 g (1300g)
Dimensions:	200 x 250 x 70 mm (LxWxH)

Specifications subject to change without notice!

Standard Accessories

50200M – Measuring Cable

50200M connecting cable for moisture meter and electrode

To connect the holder to the instrument, 1 m length
Order number: 50200M

50204M – Electrode Holder

50204M electrode holder electrode electrode for mounting different electrodes

For mounting the different electrodes, weight 100 g
Order number: 50204M

50205M – Needle Electrode, Needle Length 25 mm

50205M needle electrode for measuring the humidity of bobbins and hanks For measuring yarns, cross-wound bobbins and hanks needle length 25 mm, weight 40 g
Order number: 50205M

50207M – Needle Electrode, Needle Length 100 mm

50207M needle electrode for measuring the moisture of jute, sisal, cork and polystyrol For measuring yarns, cross-wound bobbins and hanks, etc., needle length 100 mm, weight 40 g
Order number: 50207M

50213M – Surface Electrode

50213M surface electrode for measuring the moisture of paper and cardboard For measuring fabrics, surface diameter 23 mm, weight 40 g
Order number: 50213M

Delivery Includes

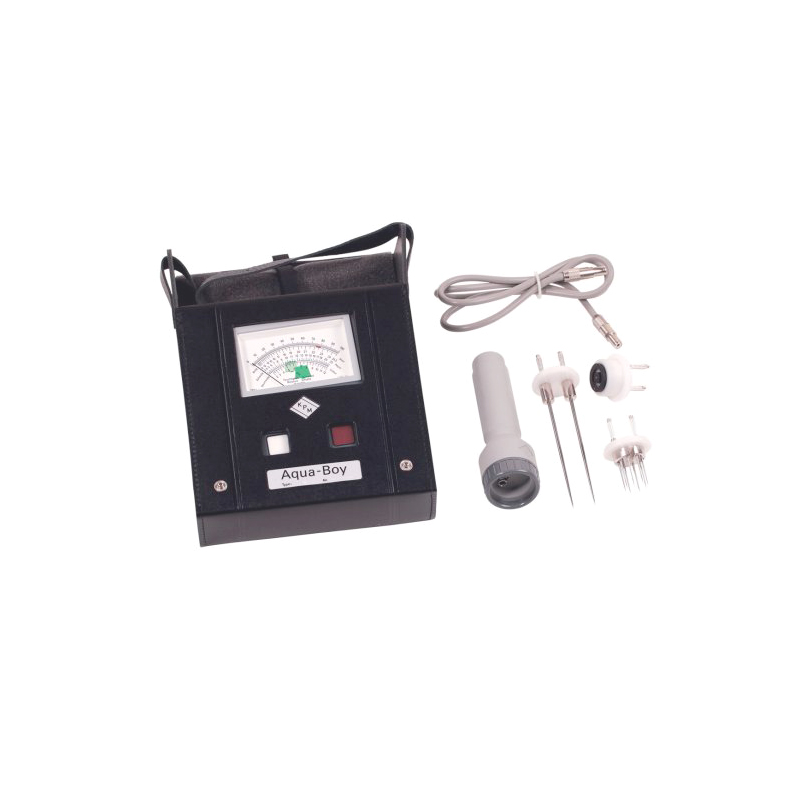

Textile moisture meter TEM H&M version with leather carrying case and battery, 1 connecting cable, electrode holder, electrodes no. 50205 and no. 50207, 1 operating instructions with comparison tables in 5 languages (German, English, French, Spanish, Italian)
