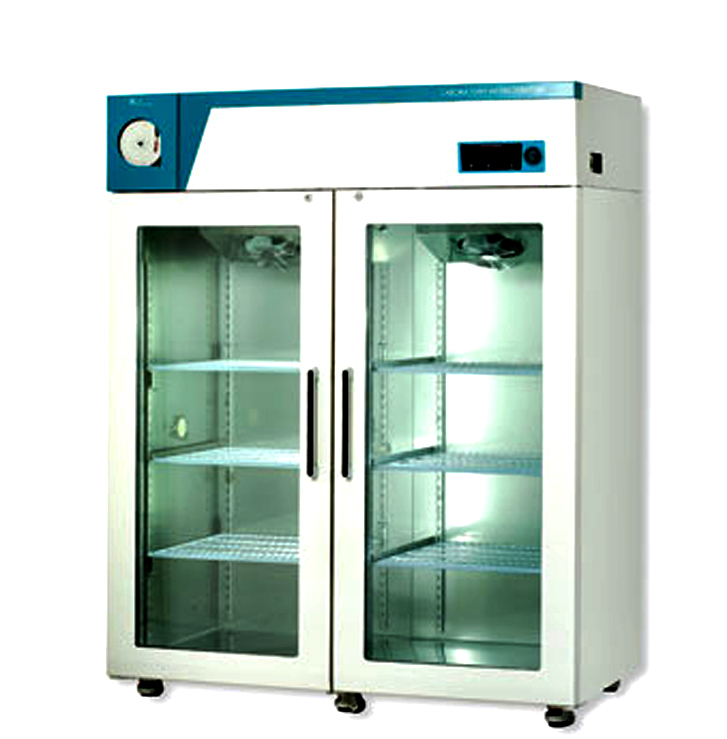

Laboratory Refrigerators
Brand: JeioTech
Model: CLG-150/300/650/850/1400
Origin: Korea
Availability: It will be available within 2-3 weeks.
Features
Performance
- Fully insulated chamber ensuring minimal chamber’s temperature fluctuation.
- High thermal efficiency evaporation system, made of low corrosive materials.
- Optimizing defrost systems
– Innovative auto-defrost system automatically activated- Innovation auto-defrost system automatically activated on detecting amount of frost accumulated in the evaporator for CLG-150, 300, 650.
– None defrost system needed for CLG-850, 1400 due to its dual refrigerating system. - None defrost system needed for CLG-850, 1400 due to its dual refrigerating system.
Convenience
- Intuitive and easy-to-operate control panel with VFD and touch-sensitive buttons.
– Easy temperature unit conversion between ℃and ℉ - Clear observation of stored samples.
– Tempered glass door with built in heating wire. (for the models with glass doors only)
– Built-in bright fluorescent lighting. (except for CLG-150) - High-quality 304 grade stainless steel interior.
- Efficient internal space use with height adjustable wire shelves.
- Built-in 50mm diameter cable port for external probes or wires. (except for CLG-150)
- Dedicated stand with casters and stacking kit for CLG-150 for use in labs with limited space. (optional)
- Three types of recorders to choose from (optional)
– Dot recorder (6 point)
– Chart recorder (6”, 24hr/7days)
– Thermal line recorder
Safety
- High/low temperature protection, Over current protection.
- Open door alarm and automatic fan stop interlocked with door opening for minimization of heat loss.
- Keypad lock function, Built in door lock with a key.
Specification
| Model | CLG3-70 | CLG-150 | CLG-300 | CLG-650 | CLG-1400 | ||
|---|---|---|---|---|---|---|---|
| Temperature range (℃ / ℉) | 2 to 10 / 35.6 to 50 | 2 to 10 / 35.6 to 50 | 2 to 10 / 35.6 to 50 | 2 to 10 / 35.6 to 50 | 2 to 10 / 35.6 to 50 | ||
| Chamber volume (L / cu ft) | 73 / 2.6 | 156 / 5.5 | 303 / 10.7 | 603 / 21.3 | 1327 / 46.9 | ||
| Dimension | |||||||
| Interior (W x D x H, mm / inch) | 418 x 440 x 400 / 16.5 x 17.3 x 15.7 |
550×580×490 / 21.7×22.8×19.3 | 550x550x1000 / 21.7×21.7×39.4 | 650x640x1450 / 25.6×25.2×57.1 | 1430x640x1450 / 56.3×25.2×57.1 | ||
| Exterior (W x D x H, mm / inch) | 522 x 600 x 725 / 20.6 x 23.6 x 28.5 |
683×791×870 / 26.9×31.1×34.4 | 670x770x1515 / 26.4×30.3×59.6 | 770x865x1965 / 30.3×34.1×77.4 | 1550x865x1965 / 61×34.1×77.4 | ||
| Net weight (kg / Ibs) | 67 / 147.7 | 100 / 220.5 | 130 / 286.6 | 210 / 463 | 350 / 771.6 | ||
| Shelf | |||||||
| Quantity of wire shelf (standard / max.) | 2 / 3 | 2 / 6 | 3 / 11 | 3 / 17 | 6 / 34 | ||
| Quantity of wire shelf (slide) (max.) | – | 4 | 7 | 11 | 22 | ||
| Quantity of drawer shelf (slide) (max.) | 2 | 3 | 5 | 8 | 16 | ||
|
Load per shelf (kg / lbs) |
30 / 66.1 |
26 / 57.3 |
30 / 66.1 |
||||
|
Fluorescent lamp |
4.2W, 1ea |
– | 18W, 1ea |
18W, 1ea |
32W, 1ea | ||
| Electrical requirements (230V, 60Hz) | 1.1A | 2A | 2.3 A | 4A | 6A | ||
| Cat. No. | Solid door | – | AAHE1001K | AAHE1011K | AAHE1021K | AAHE1041K | |
| Glass door | AAHE1301K | AAHE1101K | AAHE1111K | AAHE1121K | AAHE1141K | ||
| Electrical requirements (230V, 50Hz) | 1.1A | 2A | 2.3 A | 4A | 6A | ||
| Cat. No. | Solid door | – | AAHE1002K | AAHE1012K | AAHE1022K | AAHE1042K | |
| Glass door | AAHE1302K | AAHE1102K | AAHE1112K | AAHE1122K | AAHE1142K | ||
| Electrical requirements (120V, 60Hz) | 2.9A | 4A | 4.5 A | 6.5 A | 13A | ||
| Cat. No. | Solid door | – | AAHE1003U | AAHE1013U | AAHE1023U | AAHE1043U | |
| Glass door | AAHE1303U | AAHE1103U | AAHE1113U | AAHE1123U | AAHE1143U | ||
Accessories and Options
-
Wire Shelf
Provides uniform temperature conditions throughout the storage area thanks to space between wires. -
Remote Alarm
When a device malfunctions, a voice message is transmitted to the users. -
Drawer Shelf (Slide)
The drawer shelf of a rigid steel plate makes easy to handle storage inside.
-
Wire Shelf (Slide)
Wire type with good airflow, and convenient to use as drawer type. -
Recorder with Sensor (Chart)
- 24/7 circular chart recorder.
- Easy replacement of the recording paper.
- Independent sensor that are separate from the product.
-
Recorder with Sensor (Thermal Line)
- Graph/Digital mode.
- Thermal-type temperature recorder.
- Independent sensor that are separate from the product.
-
Recorder with Sensor (Dot)
- Up to 6 cha nnels supported.
- Set recording range and speed.
- Paper width: 1000mm.
- Independent sensor that are separate from the product.
-
Stand with Caster
- Convenient use of small devices.
- Easy to move/fix with casters.
-
Electric Socket
- Power supply for A C 230V.
- Includes cover as standard.
for Laboratory Cooling
| Model | Standard | Optional | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wire Shelf | Drawer Shelf (Slide) |
Recorder (Chart) |
Remote Alarm |
Wire Shelf (Slide) |
Drawer Shelf (Slide) |
Recorder (Chart) |
Recorder (Dot) |
Recorder (Thermal line) |
Electric Socket |
Stand with Caster |
Remote Alarm |
|
| CLG3-70 | AAAE15081 | N/A | N/A | N/A | AAAE15091 | AAAE151011) | N/A | N/A | AAAE15631 | N/A | N/A | AAAE15511 |
| CLG-150 | AAAE1511 | N/A | N/A | N/A | AAAE1514 | AAAE1517 | N/A | AAAE1562 | AAAE1503 | N/A | AAAE1542 | AAAE1551 |
| CLG-300 | AAAE1511 | N/A | N/A | N/A | AAAE1514 | AAAE1517 | AAAE1501 | AAAE1562 | AAAE1503 | AAAE1532 | N/A | AAAE1551 |
| CLG-650 | AAAE1512 | N/A | N/A | N/A | AAAE1515 | AAAE1518 | AAAE1501 | AAAE1562 | AAAE1503 | AAAE1532 | N/A | AAAE1551 |
| CLG-850 | AAAE1513 | N/A | N/A | N/A | AAAE1516 | AAAE1519 | AAAE1501 | AAAE1562 | AAAE1503 | AAAE1532 | N/A | AAAE1551 |
| CLG-1400 | AAAE1512 | N/A | N/A | N/A | AAAE1515 | AAAE1518 | AAAE1501 | AAAE1562 | AAAE1503 | AAAE1532 | N/A | AAAE1551 |
1) CLG3-70, PSR-70 offer 3 different drawer type : Digital type (AAAE15101), Key lock type (AAAE15102), Unlocked type (AAAE15103)
Cryo box / Storage box
Cryo box is designed for ultra-low temperature storage of biological materials. (heat resistance : -196°C to 121°C)
Storage box is suitable for storage of samples in general conditions. (heat resistance: 20°C to 121°C)
-
Cryo box
- Excellent durability even at ultra-low temperature with stable PC material.
- Easily distinguish samples with numbers on the covers.
- Cover, tray and dividers are separated for easy cleaning.
- Pressurized sterilization possible (autoclavable).
-
Storage box
- Excellent chemical resistance due to polypropylene material.
- The circular grooves at the bottom ensure stable mounting of tubes.
- Easy to separate samples with numbers and letters on covers.
- Pressurized sterilization possible (autoclavable).
| Model | CRB-25 | CRB-81S | CRB-81T |
|---|---|---|---|
| Tube size (ml) | 1.2 to 2.0 | 1.2 to 2.0 | 5 |
| Max. Mountable tube | 25 (5 x 5) | 81 (9 x 9) | 91 (9 x 9) |
| Dimension (W xD x H, mm / inch) |
77 x 77 x 53 / 3 x 3 x 2.1 |
132 x 132 x 54 / 5.2 x 5.2 x 2.1 |
132 x 132 x 96 / 5.2 x 5.2 x 3.8 |
| Cat. No. | AAAJ7001 | AAAJ7002 | AAAJ7003 |
| Model | SRB-100 |
|---|---|
| Tube size (ml) | 1.2 to 2.0 |
| Max. Mountable tube | 100 (10 x 10) |
| Dimension (W xD x H, mm / inch) |
140 x 140 x 53 / 5.5 x 5.5 x 2.1 |
| Cat. No. | AAAJ7011 |
Accessories for CLG3-70 / PSR3-70
LC GreenBox
- Real-time monitoring of equipment connected to LC Connected possible through the dedicated mobile application for Lab Companion.
(Supported from Android 6.0 Marshmallow version and above. iOS devices to be supported in the future) - Each lab member can access connected devices for which they have access permission through their personal mobile app.
- One LC GreenBox can communicate with up to four Lab Companion devices via an RS-232 port and can be expanded via multiple LC GreenBoxes.
- Access to the Cloud Server via Wi-Fi or wired LAN allows for a high degree of freedom in the lab.
- Real-time alarms for events concerning connected equipment
(temperature deviation, long-term door opening, power failure, and etc.)
| Cat. No. | Description | Dimension (W x D x H, mm / inch) |
|---|---|---|
| AAHQ1011K | Mobile monitoring system | 156 x 94 x 34 / 6.1 x 3.7 x 1.3 |
Battery
- Activate/deactivate battery via settings.
- When the setting of ba ttery is ON, a warning alarm occurs if the power is turned off during opera tion.
- The recorder also records power failure events.
| Cat. No. | Description |
|---|---|
| AAAE15301 | Battery |
