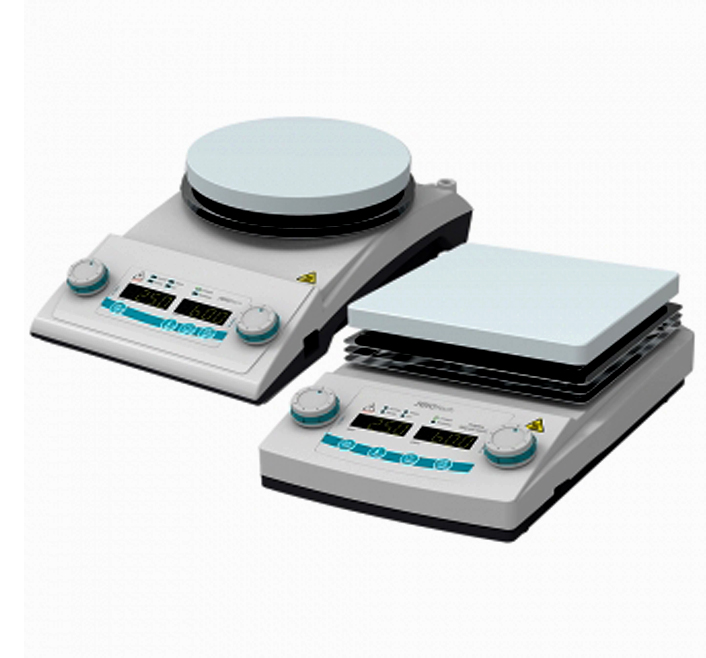

Hotplate (Digital type)
Brand: JeioTech
Model: T-14SG/17SG/18QG
Origin: Korea
Availability: It will be available within 2-3 weeks.
Features
-
T-14SG/17SG
-
T-18QG
Performance & Convenience
- Microprocessor PID temperature control.
- Auto-tuning and temperature calibration functions.
- Multi-functional temperature control modes. (optimal / fast / slow / user / point)
- Optimum heating level is adjustable from 0 to 100%.
- Integrated design of the heater and the top plate provides exceptional heat transfer rate and quick heat up capability.
- Precise temperature is set by digital display and optimum heating level is adjustable.
- Advanced dual wait on/off timer modes.
– User can set timer to starts immediately after the timer setting or only after reaching the set temp. - Separate operation RUN/STOP button.
- Non-slip heating bath with concavo-convex bottom prevents unintentional slips of the bath. (optional)
- A transparent safety shield protects users from liquid splashes. (optional)
- Support rod allows for diverse flexibility in configuring other test equipment and accessories. (optional)
Safety
- Built in thermal shut off and current limit protection.
- High and low temperature limit setting for user convenience and safety.
- Hot top warning indicator for preventing accidental injuries.
- Keypad lock function prevents accidental changes during operation.
Specification
| Model | T-14SG | T-17SG | T-18QG | |
|---|---|---|---|---|
|
Heating |
Temperature range (℃ / ℉) |
Max. 350 / 662 |
||
|
Control |
Feedback control with PID |
|||
|
Display |
LED digital (0.1℃ resolution) |
|||
|
Heating power (W) |
600 |
800 |
||
|
Safety |
Hot top indicator (℃ / ℉) |
Warning lamp (50 / 122) |
||
|
Over temp. |
Top plate / Main body / PCB |
|||
|
Over current |
Current limit protection |
|||
|
Timer |
2 type, 1min. to 99 hr. 59 min. |
|||
|
Load, Max. (kg / Ibs) |
25 / 55.1 |
|||
|
Top plate |
Shape |
Round type |
Square type |
|
|
Material |
Ceramic coated aluminum |
|||
|
Dimension |
140 / 5.5 |
170 / 6.7 |
180×180/ 7.08×7.08 |
|
|
Body |
Shape |
Straight body |
Straight body |
Straight body |
|
Material |
Aluminum |
|||
|
Dimension |
161x290x100/ 6.34×11.42×3.94 |
191x330x101/ 7.52×12.99×3.98 |
209x326x102/ 8.22×12.83×4.0 |
|
|
Net weight (kg / Ibs) |
2.2 / 4.9 |
2.9 / 6.4 |
3.8 / 8.37 |
|
| Electrical requirements (230V, 50/60Hz) | 3.0 A | 4.0 A | ||
| Cat. No. | AAH35045K | AAH35075K | AAH35085K | |
| Electrical requirements (120V, 60Hz) | 5.0 A | 6.7 A | ||
| Cat. No. | AAH35043U | AAH35073U | AAH35083U | |
Accessories and Options
Magnetic stirring bars
-
Octahedral magnetic stirring bar
Cat. No. Ø (mm / inch) L (mm / inch) BCW001513 8 / 0.31 13 / 0.51 BCW001515 8 / 0.31 15 / 0.59 BCW001522 8 / 0.31 22 / 0.86 BCW001525 8 / 0.31 25 / 0.98 BCW100528 8 / 0.31 28 / 0.10 BCW001538 8 / 0.31 38 / 1.49 BCW001541 8 / 0.31 41 / 1.61 BCW001551 8 / 0.31 51 / 2.00 BCW00155110 10 / 0.39 51 / 2.00 -
Cylindrical magnetic stirring bar
Cat. No. Ø (mm / inch) L (mm / inch) BCW0011138 8 / 0.31 13 / 0.51 BCW0011156 6 / 0.23 15 / 0.59 BCW0011208 8 / 0.31 20 / 0.78 BCW0011258 8 / 0.31 25 / 0.98 BCW0011308 8 / 0.31 30 / 1.18 BCW001140 8 / 0.31 40 / 1.57 BCW001150 8 / 0.31 50 / 1.96 -
Oval magnetic stirring bar
Cat. No. Ø (mm / inch) L (mm / inch) BCW001610 5 / 0.19 10 / 0.39 BCW001615 6 / 0.23 15 / 0.59 BCW001620 10 / 0.39 20 / 0.78 BCW00162510 10 / 0.39 25 / 0.98 BCW001630 16 / 0.63 30 / 1.18 BCW001635 16 / 0.63 35 / 1.38 BCW001640 20 / 0.78 40 / 1.57 BCW001650 20 / 0.78 50 / 1.96
Plastic retrievers
-
Plastic retriever (PP) Plastic retriever (PTFE)
Cat. No. Ø (mm / inch) L (mm / inch) BCW0041300 10 / 0.39 300 / 11.81 BCW0041350 10 / 0.39 350 / 13.77 BCW0041450 10 / 0.39 450 / 17.71 -
Plastic retriever (PTFE)
Cat. No. Ø (mm / inch) L (mm / inch) BCW004150 10 / 0.39 150 / 5.90 BCW004250 10 / 0.39 250 / 9.84 BCW004350 10 / 0.39 350 / 13.77 BCW004450 10 / 0.39 450 / 17.71 -
Support rod / Clamp holders
-
Support rod (M10)
-
Clamp holder (C-10)
-
Clamp holder (C-7)
-
Clamp holder (C-5)
| Cat. No. | Description |
|---|---|
| 00MTT0000132 | Support rod, M10 (Ø12×400mm / Ø0.47×15.75˝) |
| AAA37512 | Clamp holder, C-10 (Al body, Ø17mm / Ø0.66˝) |
| AAA37513 | Clamp holder, C-7 (Al body, Ø12mm / Ø0.47˝) |
| AAA37514 | Clamp holder, C-5 (PP body, Ø12mm / Ø0.47˝) |
| BEA1000014 | 2 Prong clamp (60mm / 2.36˝ grip) |
for Hotplates / Hotplate Stirrers
-
Temperature probe
-
Heating bath
-
Transparent safety shield
-
Silicone Cover
| Cat. No. | Description | Suitable for |
|---|---|---|
| AAA34501 | Temperature Probe (PT 100, Max. 250℃, SN-8-4 connector sensor) | TS series |
| AAA34502 | Temperature Probe (PT 100, Max. 350℃, SN-8-4 connector sensor) | |
| 00HPS0000012 | Heating Bath | T-14SG/RB, TM-14SG/RB, TS-14SG |
| 00HPS0000015 | Heating Bath | T-17SG/RB, TM-17SG/RB, TS-14SG |
| 00HPS0000059 | Transparent Safety Shield (PC) | T-14SG/RB, TM-14SG/RB, TS-14SG |
| 00HPS0000039 | Transparent Safety Shield (PC) | T-17SG/RB, TM-17SG/RB, TS-17SG |
| 00HPS0000137 | Sensor Holder (PP body, Hole 1: Ø11mm / Ø0.43˝, Hole 2: Ø10mm / Ø0.39˝, Hole 3: Ø4.2mm / Ø0.16˝) | TS series |
| 00HPS0000190 | Silicone cover | T-14SG |
| 00HPS0000191 | Silicone cover | T-17SG |
| 00HPS0000192 | Silicone cover | T-18QG |
