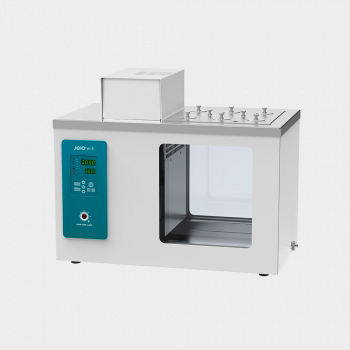

Heating Bath (Visible)
Brand: JeioTech
Model: VB-25G/40G
Origin: Korea
Availability: It will available 2-3 weeks.
Performance
- Temperature range from ambient +5°Cto 150°C.
- Microprocessor PID control / Automatic tuning / Calibration.
- Optimal temperature equilibrium achieved by a vane type stirrer with strong circulation power.
Convenience
- Easy readout digital LED displays.
(0.01°Cresolution at 0 to 99.9°C/ 0.1°C resolution at 100 to 150°C) - Dual wait on/off timer modes. (1 min. to 99 hr. 59 min.)
- Convenient memory function of up to three frequently set temperature.
- Clear visibility provided by double tempered safety glass windows in front and rear sides.
(for operation from 10°C, use an optional cooling circulator) - Ø 51mm holes (for glass capillary viscometer tubes) and a Ø12.6 mm hole. (for a thermometer)
- RS-232 interface for external control and data collection.
- Monitor via mobile app anytime, anywhere with LC Connected (mobile monitoring system) connection. (when purchased LC GreenBox)
Safety
- Isolated design of agitator, heater, and sensor by a baffle plate to minimize the turbulence in the bath fluid and also to protect users and samples against direct contact.
- Complete safety protection system with warning alarms.
– Low fluid level and dry-running, over-temperature, over-current.
-
Ideal for application requiring high visibility
-
Easy holding of U-shaped viscometer glass tubes (optional)
| Model | VB-25G | VB-40G | |||
|---|---|---|---|---|---|
|
Bath volume (L / cu ft) |
25 / 0.9 |
40 / 1.4 |
|||
|
Temperature |
Working temperature range (℃ / ℉) |
Amb. +5 to 150 / Amb. +9 to 302 |
|||
|
Temperature stability at 50℃ (±℃ / ℉) |
0.1 / 0.18 |
0.1 / 0.18 |
|||
|
Heat up time to 70℃ (min) (±℃ / ℉) |
35 |
55 |
|||
|
Dimension |
Bath opening / depth (W×L, D) (mm / inch) |
145×265, 330 / 5.7×10.4, 13 |
295×265, 330 / 11.6×10.4, 13 |
||
|
Cover lids / Hole for thermometer (mm) |
5ea / Ø51, 1ea / Ø12.6 |
8ea / Ø51, 1ea / Ø12.6 |
|||
|
Exterior (W×L×H) (mm / inch) |
492×374×536 / 19.4×14.7×21.1 |
642×374×536 / 25.3×14.7×21.1 |
|||
|
Net weight (kg / lbs) |
28 / 61.7 |
37 / 81.6 |
|||
|
Electrical requirements (230V) |
60Hz, 13A | 50Hz, 13A | 60Hz, 13A | 50Hz, 13A | |
|
Cat. No. |
AAH43302K | AAH43302K | AAH43402K | AAH43402K | |
Viscometer tube holders
Specially designed to hold a two-opening viscometer glass tube and made of Bakelite, renowned for its high thermal endurance.
| Cat. No. | Suitable for |
|---|---|
| AAA43501 | VB-25G (need max. 5 holders) |
| VB-40G (need max. 8 holders) |
Cooling circulators
The temperature range of viscometer heating baths can be lowered up to +10°C (+50°F) when used with an optional cooling circulator.
| Cat. No. | Description | Suitable for |
|---|---|---|
| AAH57051K | RW3-1025 (230V, 60Hz) | VB-25G (230V, 60Hz) |
| AAH57651K | RW3-1025P (230V, 60Hz) | |
| AAH57052K | RW3-1025 (230V, 50Hz) | VB-25G (230V, 50Hz) |
| AAH57652K | RW3-1025P (230V, 50Hz) | |
| AAH57061K | RW3-2025 (230V, 60Hz) | VB-40G (230V, 60Hz) |
| AAH57661K | RW3-2025P (230V, 60Hz) | |
| AAH57062K | RW3-2025 (230V, 50Hz) | VB-40G (230V, 50Hz) |
| AAH57662K | RW3-2025P (230V, 50Hz) |
* More information on the cooling circulators.
LC GreenBox
Real-time monitoring and control of device operation via mobile app.
Up to 4 devices can be connected at once.
| Cat. No. | Description |
|---|---|
| AAHQ1011K | JGW-4 |
