Heating Bath (Shaking)

Performance

• Temperature range from ambient +5°C to 100°C (amb. +9℉ to 212℉).
• Precise rpm(Max 200rpm) and temperature(Max 100℃) control with accuracy.
• Excellent temperature distribution by shaking motion. (50℃ ±0.1℃)
• Better performance with 3-points temperature calibration and 1-point shaking calibration.
• Optimal PID control for the Bath.
• Bath structure for a smooth water circulation flow.
• Extended height for larger sample volumes. (maximum 2.8L of flasks)

Convenience

• Automatic On/Off timer. (up to a maximum of 999 hours and 59 minutes)
• Easy operation with a touch color display.
• Drain port of better accessibility located on the side.
• USB port to connect to PC for recording and monitoring.
• Transparent gable roof-shape cover prevents condensed water from falling onto specimen.
• Corrosion resistance spring wire rack (1ea) is provided. (Standard)
• Real-time temperature and rpm control via mobile monitoring system. (Option)
• Integrated with 21 CFR Part 11 compliant LC DataKeeper, suitable for GMP audits (option)

Safety

• Audio and visual alarms and heater shutdown in case of water shortage.
• Alarm for temperature and rpm discrepancies or abnormal condition of temperature sensor.
• Over-current and short circuit protection of device.

Specification

※ The lowest controllable temperature depends on variations in room and sample temperatures. Please contact technical support for consultation before purchasing.

※ Technical data according to DIN 12876.

※ Bath fluid : Water

Accessories and Options

Flask Clamp

· Clamp being able to hold an erlenmeyer flask.
· Made of stainless steel, excellent durability.
· Equipped with flask clamps of the desired size/quantity on the universal platform and used inside the bath.

Cat.No.	Flask Clamp	Max.Mountable Flask Clamps
		BS2-10	BS2-15	BS2-20	BS2-30
AAA23550	50 ml	9	12	20	32
AAA23551	100 ml	3	9	15	24
AAA23552	250 ml	2	4	8	12
AAA23556	300 ml	2	4	8	12
AAA23553	500 ml	2	4	6	12
AAA23554	1 L	1	2	4	6
AAA23555	2 L	–	1	2	3
AAA23557	2.8 L	–	1	1	2

1) 2 L and 2.8 L flasks can be used with the bath cover opened.

Universal Platform

· Accessories for mounting flask clamp, test tube rack, etc. inside bath.
· Can be used instead of the spring part in the spring wire rack.

Cat. No.	Model
AAA44521	BS2-10
AAA44522	BS2-15
AAA44523	BS2-20
AAA44524	BS2-30

Dedicated platforms

· A Set of flask clamps(250 ml/500 ml) mounted on Universal Platform.
· Can be used instead of the spring part in the spring wire rack.

Cat. No.	Flask Clamps	Model
AAA44531	250 ml x 2ea	BS2-10
AAA44532	500 ml x 2ea
AAA44541	250 ml x 4ea	BS2-15
AAA44542	500 ml x 4ea
AAA44551	250 ml x 8ea	BS2-20
AAA44552	500 ml x 6ea
AAA44561	250 ml x 12ea	BS2-30
AAA44562	500 ml x 12ea

Test tube racks

·Able to fix test tubes of various sizes.
·Made of stainless steel, excellent durability.
· A structure that allows tilt adjustment.
· Can be used instead of the spring part in the spring wire rack.

Cat. No.	Description (mm / inch)	Max. Quantity of Racks
AAA44581	ø8 / ø0.3 x 86 Tubes	BS2-10 : 1ea BS2-15 : 2ea BS2-20 : 3ea BS2-30 : 4ea
AAA44582	ø10 / ø0.4 x 86 Tubes
AAA44583	ø12 / ø0.5 x 58 Tubes
AAA44585	ø16 / ø0.6 x 32 Tubes
AAA44586	ø25 / ø1.0 x 19 Tubes

LC GreenBox

· Real-time monitoring the state of a device via mobile app under an internet connection.
· Available to connect 4 devices in max for 1 unit of LC GreenBox.

Cat. No.	Description	Dimension (W x D x H, mm / inch)
AAHQ1011K	LC GreenBox	156 x 94 x 34 / 6.14 x 3.7 x 1.34

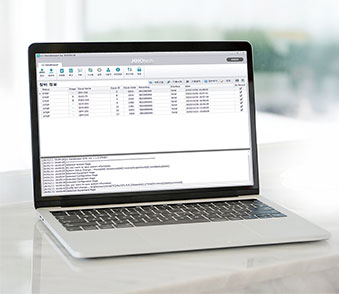

LC DataKeeper

· High-integrity software compliant with FDA 21 CFR Part 11
· Integrated with Jeio Tech equipment to undergo GMP audits

Cat. No.	Description
SSA11001	LC DataKeeper Basic
SSA11002	LC DataKeeper Pro
