Vacuum Ovens, OV4-S
Brand: JeioTech
Model: OV4-30S/65S
Origin: Korea
Availability: It will be available within 2-3 weeks.
Features
Structural Functional Features
- Wide temperature range that can be controlled up to 250°C.
- Improved temperature distribution.(±1.5°C at 100°C)
- 3-point temperature calibration, high temperature accuracy over a wide temperature range.
- Inner stainless steel and aluminum shelves provide excellent corrosion resistance and clean maintenance.
- Protects equipment from overcurrent and over temperature through safety circuits.
- Vacuum line and release line are separated and convenient to use.
- The display is mounted at the top, minimizing floor sizerequirement.
- Viton gasket when drying chemical substances which has a highreactivity. (option)
Use Convenience Features
- When a vacuum is formed and maintained, the toughened glass is attached to the gasket, so it is kept confined for long-time repeated use.
- BMS communication port that helps monitor the device temperature on the building management system. (option)
- Monitor via mobile app anytime, anywhere with LC Connected. (mobile monitoring system) (when purchased LC GreenBox)
- Recording the most recent events, such as start/stop of operation and error occurrence.
- PC connection using RS-232 port and USB port.
- Excellent visibility and viewing angle due to application of large LCD.
- Wait On/Off timer. (up to 99 hours 59 minutes)
- Integrated with 21 CFR Part 11 compliant LC DataKeeper, suitable for GMP audits (option)
Outstanding Safety
- Door structure including buffer system allows for internal pressure release through upper and lower ventilation holes when stable vacuum is formed/maintained and when there is an internal explosion.
- Polycarbonate safety cover provided in case of toughened glass breakage.
- 36 events is recorded in case of door open, error, and etc.
- Top-rated overheating protection system. (registration 10 – 0397583)
- Over temperature limit function.
- Safe product surface, even when operated at upper temperature.
- Malfunction prevented by controller lock function.
- Alarm if set temperature deviation outside of acceptable range.
Vacuum Oven Use Configuration
- It is recommended to use the cold trap bath on the vacuum line to protect the weak vacuum pump against water/solvent or to supply dry air to the sample.
Specification
<td “=””>0.2 / 0.36
| Model | OV4-30S | OV4-65S | |
|---|---|---|---|
| Control panel(L / cu ft) | 3.5 inch | 3.5 inch | |
| Chamber volume (L / cu ft) | 28 / 1 | 65 / 2.3 | |
| Temperature | Range (℃ / ℉) |
Amb. +15 to 250
/ Amb. +27 to 482
|
Amb. +15 to 250
/ Amb. +27 to 482
|
| Fluctuation (±℃ / ℉ at 100℃) | 0.2 / 0.36 | ||
| Variation (±℃ / ℉ at 100℃) | 1.5 / 2.7 | 1.5 / 2.7 | |
| Heating time to 100℃ (min.) | 70 | 90 | |
|
Vacuum gauge range, analog (Mpa)
|
0 to 0.1 | 0 to 0.1 | |
| Dimension(W×D×H) | Interior (mm / inch) |
302×305×302
/ 11.9×12×11.9
|
402×405×402
/ 15.8×15.9×15.8
|
| Exterior (mm / inch) |
534×522×655
/ 21.1×20.6×25.8
|
636×622×755
/ 25.0×24.5×29.7
|
|
|
Net weight (Kg / lbs) |
69 / 152.1 | 110 / 242.5 | |
|
Shelves
|
Quantity of shelves (standard/max.)
|
2 / 3
|
3 / 4
|
|
Max. Load per shelf (Kg / lbs)
|
20 / 44.1
|
20 / 44.1
|
|
| Electrical requirements (230V, 50 / 60Hz, A) | 5.7 | 6.7 | |
| Cat. No. | AAH13335K | AAH13345K | |
| Electrical requirements (120V, 60Hz, A) | 10.2 | 11.7 | |
| Cat. No. | AAH13336U | AAH13346U | |
Accessories and Options
Vacuum Oven System Station (OVT)
Dedicated table for organizing vacuum drying equipment neat and tidy.
A structure designed to place Vacuum Oven on top, Cold Trap Bath and Vacuum Pump on bottom.
| Cat. No. | Description |
|---|---|
| AAA13551 | Vacuum Oven System Station(OVT), 230V, 910 x 710 x 890 mm |
| AAA13552 | Vacuum Oven System Station(OVT), 120V, 910 x 710 x 890 mm |
Neatly organize power lines and vacuum hose lines with ring bolts and cable clamps.
Two outlets to connect Cold Trap Bath and Vacuum Pump, and power switch on the front for easy ON/OFF.
Convenient mobility when cleaning or replacing the glass trap of the Cold Trap Bath.
Equipped with casters for easy installation and movement.
Additional shelves
| Description | Position (OV4-303)) | Material | Cat. No. | |
|---|---|---|---|---|
| OV4-30/30S | OV4-65/65S | |||
| Bottom shelf, Basic2)) |  |
Aluminum | AAA13519 | AAA13520 |
| Stainless Steel | AAA13529 | AAA13530 | ||
| Extra shelf, Optional1)) | Aluminum | AAA13511 | AAA13513 | |
| Stainless Steel | AAA13522 | AAA13523 | ||
| Lower shelf, Basic2)) | Aluminum | AAA13517 | AAA13518 | |
| Stainless Steel | AAA13527 | AAA13528 | ||
| Upper shelf, Basic2)) | Aluminum | AAA13512 | AAA13514 | |
| Stainless Steel | AAA13522 | AAA13524 | ||
| Shelf spacer, Basic2)) | Insert where the gap occurs | Aluminum | AAA13515 | AAA13516 |
| Stainless Steel | AAA13525 | AAA13526 | ||
1) You can add an extra shelf that can be placed at the bottom to experiment with more samples same time, and the value of Variation and Fluctuation may increase slightly.
2) The shelf and shelf spacer are included as bundled accessories, and you can purchase when need to replace them.
3) For OV4-65 models, 2 upper shelves are basic provided.
More options
-
Viton gaskets
-
Vacuum pumps
-
Cold trap baths
-
LC GreenBox
-
BMS Port
-
LC DataKeeper
| Description | Cat. No. | ||
|---|---|---|---|
| OV4-30/30S | OV4-65/65S | ||
| Silicone Gasket | Basic bundle accessory. Silicon gasket for sealing the door. | 00FAA0005146 | 00FAA0005147 |
| Viton Gasket | High chemical resistance. | 00FAA0005187 | 00FAA0005188 |

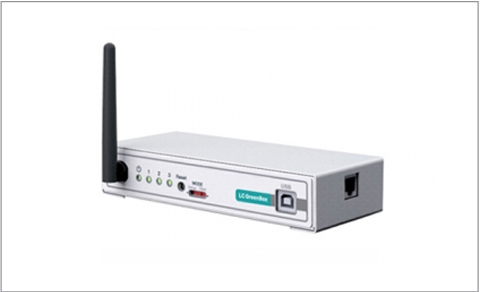

| LC GreenBox | Mobile connection adapter. Available real-time monitoring and control on Lab Companion mobile app. | AAHQ1011K | AAHQ1011K |

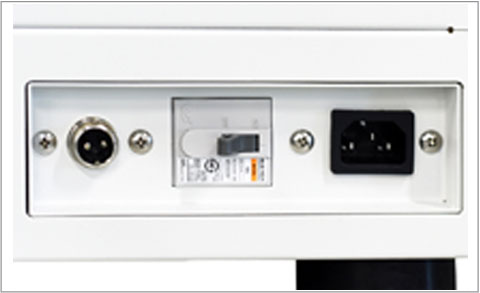

| BMS Port | Real-time monitoring at a central monitoring facility. | AAA125558 | AAA125558 |
Vacuum pumps
Rotary vacuum pumps with directly connected oil seal prevent air reflux and provide high vacuum pressure for vacuum ovens.
| Cat. No. | Description |
|---|---|
| BEH73205K | W2V10 (230V, 50/60Hz) |
| BEH73206U | W2V10 (120V, 60Hz) |
| BEA700351 | Oil mist trap (PC) |
| BEA700355 | Oil mist trap (metal) |
| BEA700353 | Vacuum pump oil (1L) |
| BEA700354 | Vacuum pump oil (20L) |
※ In order to get rid of evaporated oil or to block oil in-flow, an optional oil mist trap is recommended.
Cold trap baths
CTB-10 cold trap baths equipped with two U-type glass traps prevent a vacuum pump from vapors or contamination.
| Cat. No. | Description |
|---|---|
| AAH62011K | CTB-10 (230V, 60Hz) |
| AAH62012K | CTB-10 (230V, 50Hz) |
| 00FCA0001110 | U-type glass trap (1ea) |
| Description | OV4-30/30S | OV4-65/65S | |
|---|---|---|---|

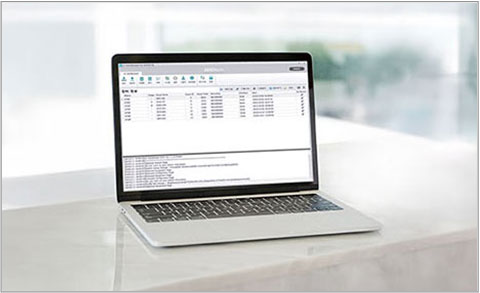

| LC DataKeeper Basic | FDA 21 CFR Part 11 compliant data integrity software | SSA11001 | |
| LC DataKeeper Pro | SSA11002 | ||
