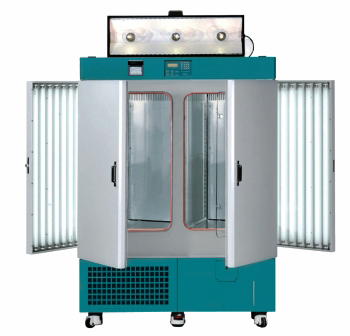

Plant Growth Chambers

Performance

General control system

• 5℃to 50℃(lamp off) / 10℃to 50℃. (lamp on)
• Max. to 35,000Lux for GC-1000.
  Max. to 20,000Lux for GC-300 Models.
• 40 to 80% RH for GC-300TLH. (at 20 to 35℃)
  50 to 90% RH for GC-1000TLH. (at 20 to 35℃)
• Max. 5,000ppm CO2 on/off system. (optional)
• Microprocessor PID control / Temperature calibration / Automatic tuning.
• 10 step programmable temperature, humidity, and illumination profiles and repeatable steps of up to 999 cycles.

Illuminance control system

• Uniformed luminescence distribution.
• Broad distribution of side lamps for hastening the growth of plants.
• High intensity illumination of upper lamp for light efficient and low thermal load. (for GC-1000TLH/1000TL)
• Unique construction for minimization of heat increase from surrounding lamps.
  – Tempered glass door blocks heated air from lamps.
  – Designed to exhaust heated air through upper vent holes. (for GC-1000TLH)
• Stable and long lasting lighting through introduction of high frequency electronic ballast lamps.

Convenience

• Ergonomically designed door construction.
  – Inner glass door with silicone and external door with magnetic sealing for dual airtight packing.
  – Well designed providing a smooth open for minimization of damage to plants.
• Wide inner tempered glass door for clear observation of plant growth without affecting inner chamber’s environment.
• Tall plants can be grown inside of the chamber with adjustment of shelve level.
• Maintenance of water supply are easily performed with a front water tank. (GC-1000TLH)
  – Water level check indicated by water level bar in the tank.
• Water supply during operation is also available for long term test purposes.
• Adjustable water tank position. (for GC-300TLH)
• Detachable condenser air-filter for easy maintenance of refrigerating efficiency.
  – Maintenance of air filter no longer cumbersome with our detachable condenser air filter.
• Casters for easy mobility during installation or relocation.
• Eco-friendly CFC-free refrigerant use.

Safety

• Automatic shut off after overheat alarm.
• Low and empty water level alarm.
• Power supply leakage breaker.
• Over current protection,
• Open door alarm.

Lamps setting

• Control illumination values with the below lamp setting arrangements.



Specification

Model		GC-300TL		GC-300TLH		GC-1000TLH
Chamber volume (L / cu ft)		300 / 10.6				1000 / 35.3
Control system		Microprocessor PID controller
Temperature	Range (℃ / ℉)	5 to 50 / 41 to 122 – Lamp off
		10 to 50 / 50 to 122 – Lamp on
		20 to 50 / 68 to 122 – with humidity
	Fluctuation (±℃ / ℉) at 25℃	0.1 / 0.18 – without humidity
	Variation (±℃ / ℉) at 25℃	0.8 / 1.43 – without humidity
Illumination	Range (Lux)	0 to 20,000				0 to 35,000
	Control (steps)	10				11
	Lamp	Fl lamp (32W×18ea)				FL lamp (32W×16ea)
						Metal lamp (400W×3ea)
Humidity	Range (% RH)	–		40 to 80 at 20 to 35℃		50 to 90 at 20 to 35℃
				70 to 90 at 36 to 50℃		60 to 90 at 36 to 50℃
	Fluctuation (±RH) at 60% RH	–		3
Co2(optional)	Range (ppm)	Max. 5,000
	Sensor	NDIR CO2 sensor
Refrigerant (HP)		1/2				3/4
Temp. heater power (W)		750×2ea				1,500×2ea
Humid. heater power (W)		–		1300		1500
Dimension (W×D×H)	Interior (mm / inch)	510×540×1100 / 20×21.3×43.3				1200×800×1080 / 47.2×31.5×42.5
	Exterior (mm / inch)	700×805×1900 / 27.6×30.1×74.8				1410×1070×2150 / 55.5×42.1×84.7
	Net weight (kg / lbs)	250 / 551.2				550 / 1212.5
Electrical requirements (230V)		60Hz / 12.5A	50Hz / 12.5A	60Hz / 16A	50Hz / 16A	60Hz / 30A	50Hz / 23.2A
Cat. No.		AAHA1012K	AAHA1012K	AAHA1022K	AAHA1022K	AAHA1031K	AAHA1032K

Accessories and Options

•

  Wire shelves

•

  Perforated shelves

•

  Recorder (dot type)

•

  CO2 Control System

Model	Wire shelves			Perforated shelves
	Cat. No.	Dimension (W×L, mm / inch)	No. of shelves (standard/max.)	Cat. No.	Dimension (W×L, mm / inch)	No. of shelves (max.)
GC-300TL	00EDA0008220	466×490 / 18.3×19.3	3 / 14	AAA22522	466×490 / 18.3×19.3	14
GC-300TLH	00EDA0008220		3 / 14	AAA22522		14
GC-1000TLH	00EDA0008222	580×770 / 2.8×30.3	6 / 29	AAAA1512	580×770 /  22.8×30.3	29



Model	Recorder	CO2 sensor
	Cat. No.	Cat. No.
GC-300TL	AAAA1501	AAAA1521
GC-300TLH	AAAA1501	AAAA1521
GC-1000TLH	AAAA1502	AAAA1521
