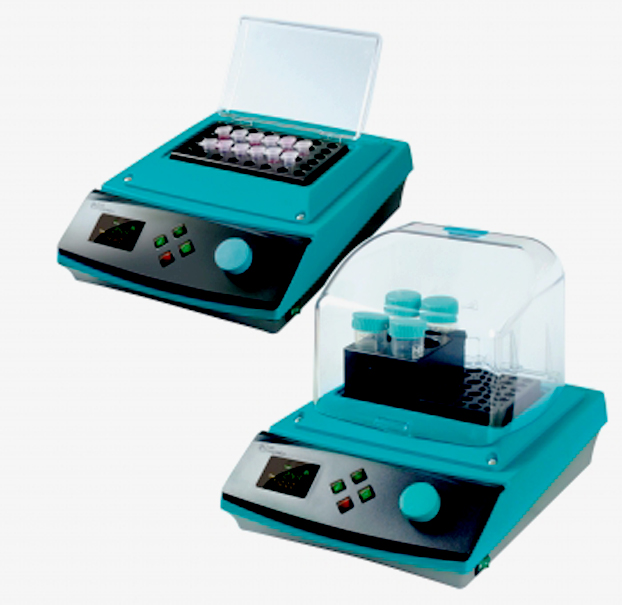

Heating Blocks
Brand: JeioTech
Model: CHB-350S/350T
Origin: Korea
Availability: It will be available within 2-3 weeks.
Description
Features
Performance
- Precision accuracy of ±0.1°C is ensured by PID controller from ambient + 5°C to 130°C.
- Its built-in temperature limit setting feature (with max. 0.2°C overshooting) allows you to perform highly temp. sensitive reactions such as isothermal amplifications.
- Optimal heat transfer is achieved by the tight coupling design of the main body and the corrosion-resistant anodized aluminum blocks.
Convenience
- Bright VFD display with responsive touch buttons.
- Advanced dual wait on/off timer modes.
– User can set timer to starts immediately after the timer setting or only after reaching the set temperature. - Transparent lid allows easy sample monitoring and even temperature distribution.
- Blocks can be easily interchanged by the included block lifter
Safety
- Self-diagnostic function identifying errors.
- Over-temperature and over-current protection.
- Its polypropylene main body is highly chemical-resistant and easy-to-clean.
Specification
| Model | CHB-350S | CHB-350T | |
|---|---|---|---|
| Control system | Feedback control PID | ||
| Display | VFD (0.1℃ resolution) | ||
| Temperature | Range (℃ / ℉) | Amb. +5 to 130 / Amb. +41 to 266 | |
| Fluctuation at 37℃ (±℃ / ℉) | 0.1 / 0.18 | ||
| Variation at 37℃ (±℃ / ℉) | 0.5 / 0.09 | ||
| Safety | Over temp. | Heating plate | |
| PCB | |||
| Over current | Current limit protection | ||
| Dimension (W×D×H) | Interior (mm / inch) | 154×99×37 / 6.1×3.9×1.5 | |
| Exterior (mm / inch) | 249×330×125 / 9.8×13×4.9 | 249×330×250 / 9.8×12.8×9.8 | |
| Net weight (kg / lbs) | 3.9 / 8.6 | 4.3 / 9.5 | |
| Electrical requirements (230V, 50 / 60Hz) | 3.5A | ||
| Cat. No. | AAHJ1015K | AAHJ1115K | |
| Electrical requirements (120V, 60Hz) | 6.7A | ||
| Cat. No. | AAHJ1013U | AAHJ1113U | |
Accessories and Options
| Block | Cat. No. | Description | Max.Mountable Tube | WxDxH(mm, inch) | Mountable Capacity of Blocks | ||
|---|---|---|---|---|---|---|---|
| CHB-350S | CHB-350T | CCB-350 | |||||
 |
10CHB0000030 | 96-well Tube block (micro-tube) |
0.2ml x 96 holes | 153×98×41/ 6×3.9×1.6 | 1 | 1 | – |
 |
10CHB0000029 | 0.5 ml Tube block (micro-tube) |
0.5ml x 48 holes | 98×76.5×41/ 3.9×3×1.6 | 2 | 2 | 1 |
 |
10CHB0000045 | 1.5/2.0 ml Tube block (micro-tube) |
1.5/2.0ml x 30 holes | 98×76.5×41/ 3.9×3×1.6 | 2 | 2 | 1 |
 |
10CHB0000028 | 1.5/2.0 ml Tube block (micro-tube) |
1.5/2.0ml x 48 holes | 153×98×41/ 6×3.9×1.6 | 1 | 1 | – |
 |
10CHB0000031 | 15 ml Tube block (centrifuge tube) |
15ml x 15 holes | 98×76.5×51/ 3.9×3×2 | 2* | 2 | 1* |
 |
10CHB0000032 | 50 ml Tube block (centrifuge tube) |
50ml x 6 holes | 98×76.5×51/ 3.9×3×2 | 2* | 2 | 1* |
 |
10CHB0000033 | 98×76.5×87/ 3.9×3×3.4 | 2* | 2 | 1* | ||
 |
10CHB0000034 | Ø10 Tube block | Ø10 x 35 holes | 98×76.5×51/ 3.9×3×2 | 2* | 2 | 1* |
 |
10CHB0000035 | Ø12 Tube block | Ø12 x 24 holes | 2* | 2 | 1* | |
 |
10CHB0000036 | Ø13 Tube block | Ø13 x 24 holes | 2* | 2 | 1* | |
 |
10CHB0000037 | Ø15 Tube block | Ø15 x 20 holes | 2* | 2 | 1* | |
 |
10CHB0000038 | Ø16 Tube block | Ø16 x 16 holes | 2* | 2 | 1* | |
 |
10CHB0000039 | Ø18 Tube block | Ø18 x 12 holes | 2* | 2 | 1* | |
 |
10CHB0000040 | Ø20 Tube block | Ø20 x 12 holes | 2* | 2 | 1* | |
