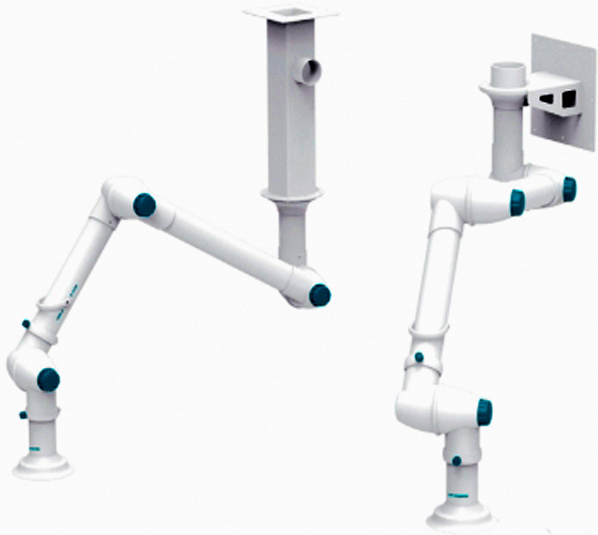

Extraction Arm Hood from JeioTech is available in Bangladesh

Extraction Arm Hood

Brand: JeioTech

Model: AH-3160, AH-3160C, AH-3160A, AH-3160AC, AH5-3160, AH5-3160C

Origin: Korea

Availability: It will be available within 2-3 weeks.

Features

Quick tilt-adjustable knob
360° rotatable joint
Damper for airflow rate adjustment

Selection guide

Step 1. Extraction Arm

	Type	Description
Material	Polypropylene	Excellent chemical resistance
Diameter	50 mm	For fine work
Diameter	75mm ²⁾	For general work
Joint	3 Joint	Radius 1480 ~ 1780 mm / 58.3 ~ 70.1 inch

1) Weak against scratching due to the nature of the material.

2) 75mm radius used in the case of mist.

Specification

Model			Extraction Arm, Length (mm / inch)					Weight (kg / lbs)	Cat. No.
Model			A	B	C	D	Total	Weight (kg / lbs)	Cat. No.
75mm / 3.0 inch diameter, Polypropylene	3 Joints	AH-3160	250 / 9.8	640 / 25.2	530 / 20.9	260 / 10.2	1680 / 66.1	2.4 / 5.3	AAAB6541
75mm / 3.0 inch diameter, Polypropylene, Ceiling mount type	3 Joints	AH-3160C	250 / 9.8	640 / 25.2	530 / 20.9	260 / 10.2	1680 / 66.1	2.4 / 5.3	AAAB6542
50mm / 2.0 inch diameter, Polypropylene	3 Joints	AH5-3160	250 / 9.8	9.8 640 / 25.2	540 / 21.3	250 / 9.8	1680 / 66.1	1.4 / 3.1	AAAB6563
50mm / 2.0 inch diameter, Polypropylene,Ceiling mount type	3 Joints	AH5-3160C	250 / 9.8	640 / 25.2	540 / 21.3	250 / 9.8	1680 / 66.1	1.4 / 3.1	AAAB6566

Step 2. Bracket & Column

Column of suitable height is selected based on the ceiling height.
Excellent durability due to powder coating.

Specification

Model	Dimension (W x D x H, mm / inch)	Cat. No.
Ceiling Bracket	260 x 260 x 2 / 10.2 x 10.2 x 0.08	AAAB6508
Ceiling Column	100 x 100 x 250 / 3.9 x 3.9 x 9.8	AAAB6512
	100 x 100 x 500 / 3.9 x 3.9 x 19.7	AAAB6513
	100 x 100 x 750 / 3.9 x 3.9 x 29.5	AAAB6514
	100 x 100 x 1000 / 3.9 x 3.9 x 39.4	AAAB6515
	100 x 100 x 1250 / 3.9 x 3.9 x 49.2	AAAB6516
	100 x 100 x 1500 / 3.9 x 3.9 x 59.1	AAAB6517
Ceiling Column (for textured ceiling)	100 x 250 / 3.9 x 9.8	AAAB6518
Ceiling Column (for textured ceiling)	100 x 500 / 3.9 x 19.7	AAAB6519
Wall Bracket	158 x 259 x 82 / 6.2 x 10.2 x 3.2	AAAB6510

Step 3. Hood

	Material	Description
Basic type	Polypropylene	·When the emission range of the source is narrow. ·When the source can be collected at close range.
Dome type (Clear)	Styrene butadiene copolymer	·When the emission range of the source is wide. ·Used for capturing light gas.
Dome type (White)	Polypropylene
Square type (Clear)	Styrene butadiene copolymer	·When heavy gas is collected, one side is supported on the table and used like a shield.
Square type (White)	Polypropylene
Hood type (White)	Polyethylene	·Compact total hood form, securely blocking the user’s gas inhalation.

Dome type
Square type
Hood type

Specification

Diameter	Type	Dimension	Color	Material	Cat. No.
Φ75 mm/ 3.0 inch	Basic (Ø, mm / inch)	171 / 6.7	White	Polypropylene	Standard
	Dome (Ø x H, mm / inch)	280 x 110 / 11 x 4.3	Clear	Styrene butadiene copolymer	AAAB6251
		400 x 140 / 15.7 x 5.5	White	Polypropylene	AAAB6221
		400 x 140 / 15.7 x 5.5	Clear	Styrene butadiene copolymer	AAAB6211
	Square (W x D x H, mm / inch)	494 x 390 x 245 / 19.4 x 15.4 x 9.6	White	Polypropylene	AAAB6241
	Square (W x D x H, mm / inch)	494 x 390 x 245 / 19.4 x 15.4 x 9.6	Clear	Styrene butadiene copolymer	AAAB6231
	LC Magnet System^* (Dome & Square) (mm / inch)	Dome: 400 x 140 / 15.7 x 5.5 (Ø x H) Square: 494 x 390 x 245 / 19.4 x 15.4 x 9.6 (W x D x H)	Clear	Styrene butadiene copolymer	AAAB6250
Φ50 mm / 2.0 inch	Dome (Ø x H, mm / inch)	294 x 180 / 11.6 x 7.1	White	Polypropylene	Clear Dome (Standard) (Optional White Dome)
Φ50 mm / 2.0 inch	Dome (Ø x H, mm / inch)	294 x 180 / 11.6 x 7.1	Clear	Styrene butadiene copolymer	Clear Dome (Standard) (Optional White Dome)
