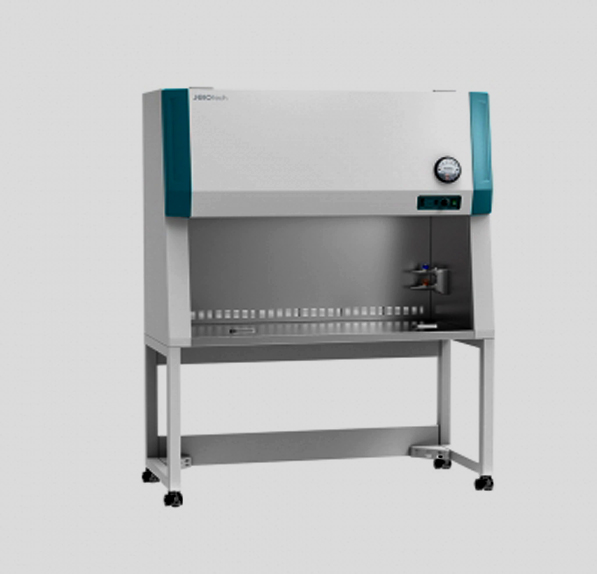

Clean Bench (Advanced)
Brand: JeioTech
Model: BC-01H/11H/21H
Origin: Korea
Availability: It will be available within 2-3 weeks.
Features
Performance
- ISO class 4 (US class 10) HEPA filter for optimal protection against cross-contamination.
- 0.3 μm and larger particulates are removed with 99.99% efficiency, leak-tight HEPA filter which satisfying class 10. (US Federal Standard 209E)
(average life span of HEPA filter: 3 years – it depends on the test room conditions) (optional) - High-quality polyester fiber pre filter (with minimal pressure loss and 85% arrestant on the A.F.I. test) for trapping larger particles and increasing the life of the main HEPA filter.
- Digital airflow rate sensor (microprocessor) for automated airflow speed control.
– Offers continual airflow speed of same velocity and extends the HEPA filter life span. - Exclusive diffusing muffler structure forms high quality laminar flow.
- Quiet and comfortable working environment. (less than 65dB)
Convenience
- Interlocking smart door system
– When the sash door is opened during UV sterilization, the UV lamp is automatically turned off to protect from UV exposure and the fluorescent lamp and blower are automatically operated. (registration 10-1451382)
- Two digital displays for the best convenience.
– Even if any test is ongoing inside of the chamber, unit conditions such as velocity, temperature and humidity can be easily checked by the inner and outside displays. - Digital differential pressure sensor allows for easy verification of HEPA filter condition great for knowing when to change HEPA filter.
- When UV light intensity is lower than 80%, UV warning lamp is automatically on to let users know when to change UV-lamp.
- Comfortable front access to cartridge type of filters for easy replacement.
- Highly durable, rust-free, and easy-to-clean grade 304 stainless steel work surface.
- The inner left side magnetic board allows some memos and small tools.
- Digital-type UV timer. (up to 59 mins and 59 secs)
Safety
- UV-blocking and impact-resistant tempered glass door.
- If the sash is opened more than the recommended sash height level, during operation, warning alarm will activate and alarm users to lower the window to the recommended sash level to prevent contamination of samples.
- If the sash is opened during UV-lamp operation, UV lamp automatically turns off to protect users.
- Smoothly sliding front door stoppable at any height for user’s safety and easy transport of equipment into the workspace.
- Protection against over-current
Specification
| Model | BC-01H | BC-11H | BC-21H | ||||
|---|---|---|---|---|---|---|---|
|
Air |
Air flow type |
Vertical laminar flow |
|||||
|
Airflow velocity (m / s / fpm) |
0.4 / 79 |
0.4 / 79 |
0.4 / 79 |
||||
|
Main filter |
HEPA (99.99% at 0.3 ㎛) |
||||||
|
Pre-filter |
Polyester Fibers |
||||||
|
Illumination |
U.V. lamp (254 nm, W) |
25 x 1ea |
30 x 1ea |
25 x 2ea |
|||
|
Fluorescent lamp (W) |
30 x 2ea |
30 x 2ea |
32 x 2ea |
||||
|
Fluorescent lamp intensity(Lux) |
more than 650 |
||||||
|
Dimension (W×D×H) |
Exterior with stand (mm / inch) |
1135 x 620 x 1860
|
1435 x 620 x 1860
|
2035 x 620 x 1860
|
|||
|
Exterior without stand (mm / inch) |
1135 x 620 x 1150
|
1435 x 620 x 1150
|
2035 x 620 x 1150
|
||||
|
Interior (mm / inch) |
945 x 585 x 670
|
1245 x 585 x 670
|
1845 x 585 x 670
|
||||
|
Net weight (body) (kg / lbs) |
140 / 308.6 |
185 /407.9 |
225 / 496 |
||||
|
Net weight (body + stand) (kg / lbs) |
170 / 374.8 |
215 / 474 |
255 / 562.2 |
||||
|
Noise level (dB) |
less than 65 |
||||||
|
Electric socket outlets |
230V socket |
||||||
|
Electrical requirements (230V, 50/60Hz, 1ph) |
1.38 A | 1.73 A | 2.30 A | ||||
|
Cat. No. |
AAHA5012K | AAHA5022K | AAHA5032K | ||||
|
Electrical requirements (120V, 60Hz, 1ph) |
2.62 A | 3.27 A | 4.36 A | ||||
|
Cat. No. |
AAHA5013U | AAHA5023U | AAHA5033U | ||||
Accessories and Options
-
HEPA filter
– 99.99% efficient HEPA filter, industry standard size for economical replacement. -
Stand with casters
– Stand with casters : Mobile stand made of powder-coated steel ideal for easy relocation. -
Pre filter
– Easy-to-replace pre-filter for trapping larger particles and extending the life of HEPA filters.
Filters
| Cat. No. | Description | BC-01H/B | BC-11H/B | BC-21H/B |
|---|---|---|---|---|
| AAAB1601 | HEPA filter |  |
– | – |
| AAAB1602 | – | |
– | |
| AAAB1603 | – | – | |
|
| AAAB1611 | Pre filter | |
– | – |
| AAAB1612 | – | |
– | |
| AAAB1613 | – | – | |
Others
| Cat. No. | Description | BC-01H/B | BC-11H/B | BC-21H/B |
|---|---|---|---|---|
| AAAB1621 | Stand with casters | |
– | – |
| AAAB1622 | – | |
– | |
| AAAB1623 | – | – | |
|
| AAAB1631 | UV lamp (230V) | |
– | – |
| AAAB1633 | – | |
– | |
| AAAB1635 | – | – | |
|
| AAAB1632 | UV lamp (120V) | |
– | – |
| AAAB1634 | – | |
– | |
| AAAB1636 | – | |
||
| AAAB1561 | Gas cock | |
|
|
